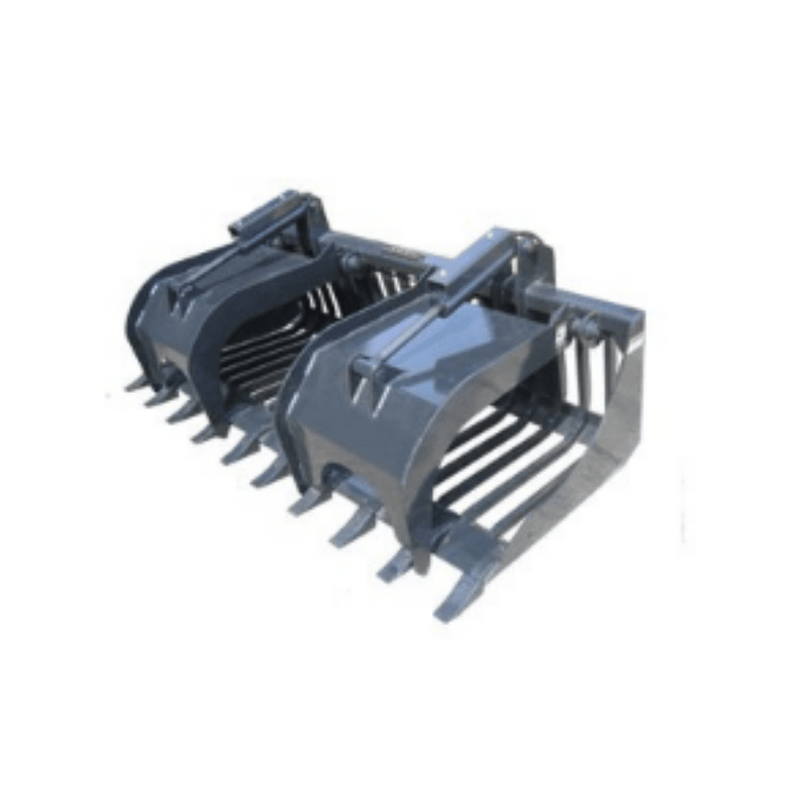

Haugen Attachments Industrial Rod Grapples
The Haugen Attachments Industrial Rod Grapple is engineered for rugged performance in rock, brush, and heavy debris handling applications. Built with industrial-grade components and robust construction, this rod grapple delivers exceptional strength and reliability on the toughest job sites. Its 1β x 1.5β heavy-duty curved flat bar tines with 3-inch spacing provide excellent material penetration while letting dirt and small debris sift through, making it perfect for clearing and sorting tasks.
Designed for versatility, the independent twin grapple arms with industrial 2.5" x 10" cylinders offer powerful clamping force and precise control on uneven loads. Protected hose routing and abrasion sleeves enhance durability, while greaseable pivot points ensure long-lasting operation and easier maintenance. Whether paired with a skid steer loader or other compatible equipment, this grapple attachment combines durability with performance to tackle land clearing, rock handling, and brush removal with confidence.
FEATURES & BENEFITS
- Heavy-Duty Rod Tines β 1β x 1.5β curved flat bar rods, 3β spacing for performance and material separation.
- Weld-on Tooth Bar β Replaceable tip teeth for extended service life.
- Independent Twin Grapples β Dual cylinders for secure hold on irregular loads.
- Industrial 2.5" x 10" Cylinders β Designed for demanding work and repeated duty.
- Greaseable Pivot Points β Easy maintenance for long-term reliability.
- Protected Hose Routing β Abrasion sleeves safeguard hydraulic lines.
- Powder Coat Finish β Durable protection against wear and corrosion.
- Multiple Sizes β Available in 76" and 84" to match different equipment and jobs.
- Optional Mounting β Euro/global or tractor mounts available on request.
Benefits
- Superior Material Handling: Effectively grabs rocks, brush, and debris while letting fine material fall through for cleaner loads.
- Heavy-Duty Durability: Built to withstand tough industrial and construction environments with reinforced design elements.
- Improved Efficiency: Independent grapple arms adjust to uneven loads for secure handling and faster job completion.
- Reduced Wear & Tear: Greaseable points and abrasion protection extend service life and reduce downtime.
SPECIFICATIONS
| ModelΒ | Bucket Width | Grapple Opening | Weight |
|---|---|---|---|
| HIRDG 76 | 76.00" | 38.00" | 1250 lbs |
| HIRDG 84 | 84.00" | 38.00" | 1365 lbs |
