CL Fabrication Skid Steer Ripper
Authorized CL Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.

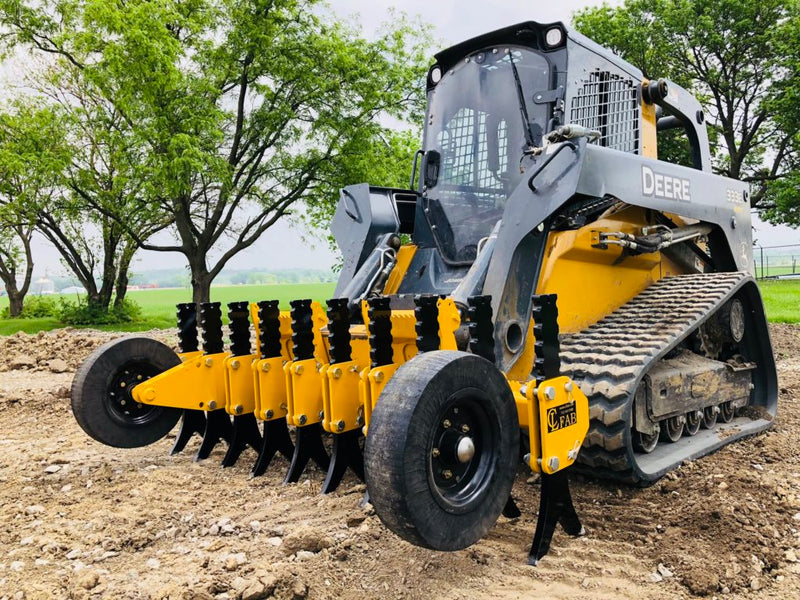

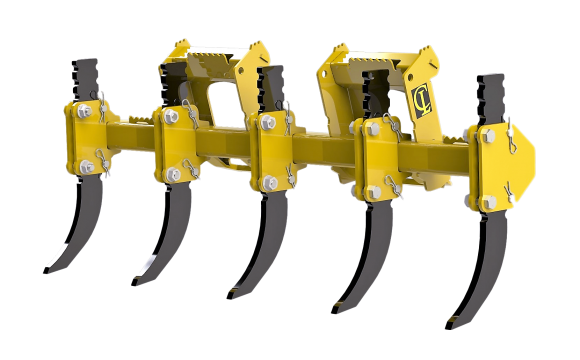

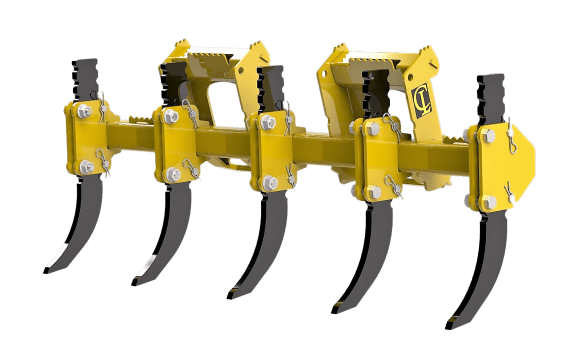

The CL Fabrication XR Ripper is a powerful ground-engaging attachment engineered for skid steers and compact track loaders. Designed to tackle the toughest site preparation and land-clearing jobs, the XR Ripper efficiently breaks up compacted soil, tears through roots, dislodges rocks, and helps remove stubborn stumps. Built to handle the power of today's largest skid steers and compact track loaders, it delivers exceptional performance in construction, agriculture, forestry, and landscaping applications.
Constructed with heavy-duty AR400 steel tines and a reinforced tubular frame, the XR Ripper provides outstanding durability and wear resistance in demanding environments. Reversible teeth allow operators to rip effectively in both forward and reverse directions, while tool-free tine adjustment makes it easy to customize spacing for specific applications. With a ripping depth of up to 20 inches below grade, the XR Ripper is an ideal solution for aggressive ground preparation and reclamation projects.
Features & Benefits
- Designed for skid steers and compact track loaders
- Breaks up hard ground and compacted soil with ease
- Removes roots, rocks, and stumps efficiently
- Reversible AR400 steel tines allow forward and reverse ripping
- Adjustable tooth spacing adapts to varying ground conditions
- Tool-free tine adjustment improves productivity
- Heavy-duty steel frame handles high-power machines
- Deep ripping capability reaches up to 20 inches below grade
- Four anti-skid steps improve operator safety and accessibility
- Powder-coated finish provides corrosion resistance and durability
- Available in multiple widths and tooth configurations
- Ideal for land clearing, site preparation, forestry, and agricultural applications
Specifications
| Specification | Details |
|---|---|
| Product Name | XR Ripper |
| Compatible Equipment | Skid Steers & Compact Track Loaders |
| Available Widths | 76 in. & 84 in. |
| Maximum Ripping Depth | 20 in. Below Grade |
| Tine Material | 1 in. x 30 in. AR400 Steel |
| Tine Design | Reversible for Forward & Reverse Ripping |
| Frame Construction | 4 in. x 4 in. x 0.375 in. Steel Tubing |
| Tooth Mount Plates | 1/2 in. Thick Steel |
| Attach Points | 3/4 in. Thick Upper & Lower Plates |
| Operator Access | Four Anti-Skid Steps |
| Tine Adjustment | No Tools Required |
| Finish | Durable Powder-Coated Finish |
| Model XR76-5 | 76 in. Width, 5 Teeth, 18.75 in. Spacing |
| Model XR76-7 | 76 in. Width, 7 Teeth, 12.5 in. Spacing |
| Model XR76-9 | 76 in. Width, 9 Teeth, 9.375 in. Spacing |
| Model XR76-10 | 76 in. Width, 10 Teeth, 8.33 in. Spacing |
| Model XR84-5 | 84 in. Width, 5 Teeth, 20.75 in. Spacing |
| Model XR84-7 | 84 in. Width, 7 Teeth, 13.87 in. Spacing |
| Model XR84-9 | 84 in. Width, 9 Teeth, 10.375 in. Spacing |
| Model XR84-10 | 84 in. Width, 10 Teeth, 9.25 in. Spacing |

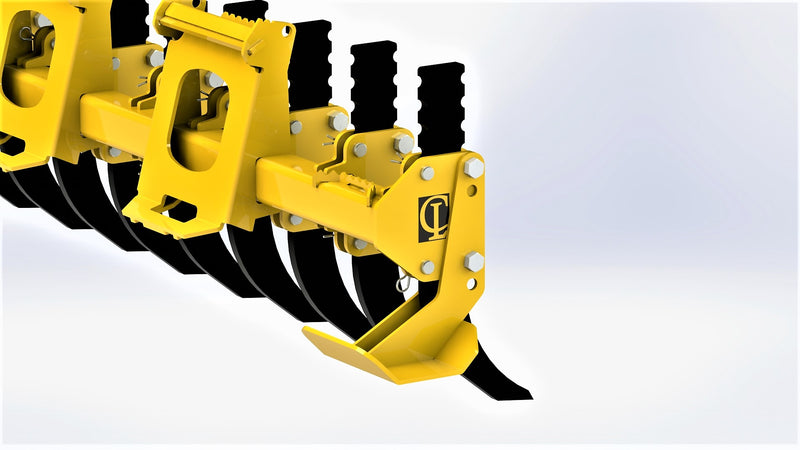

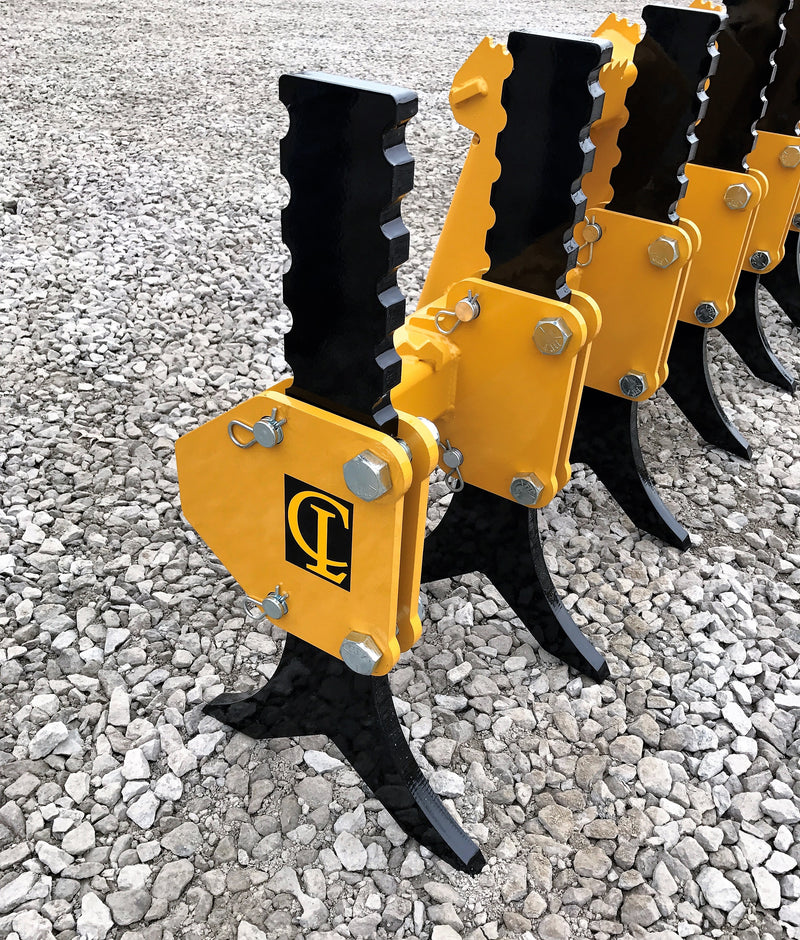

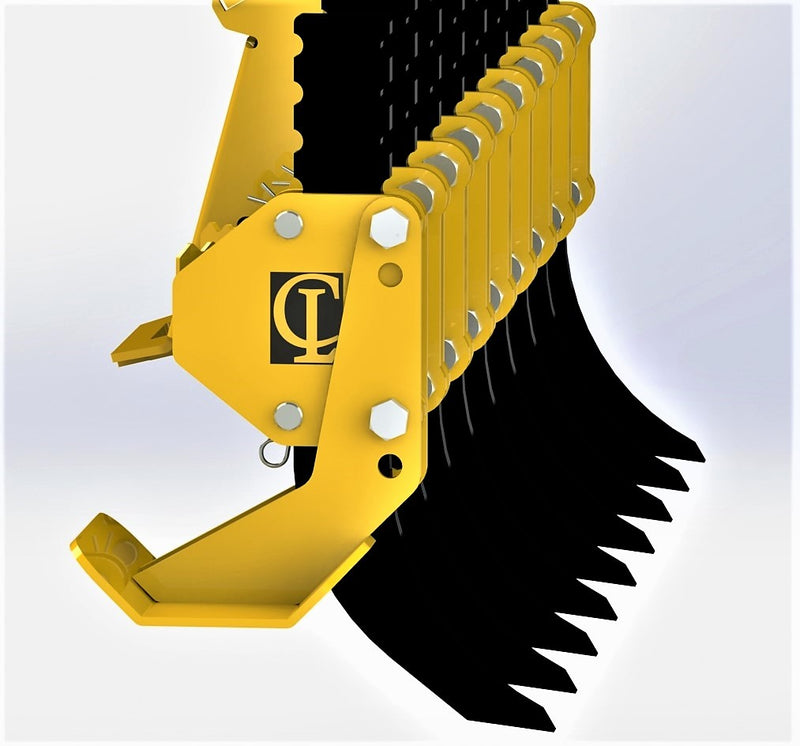

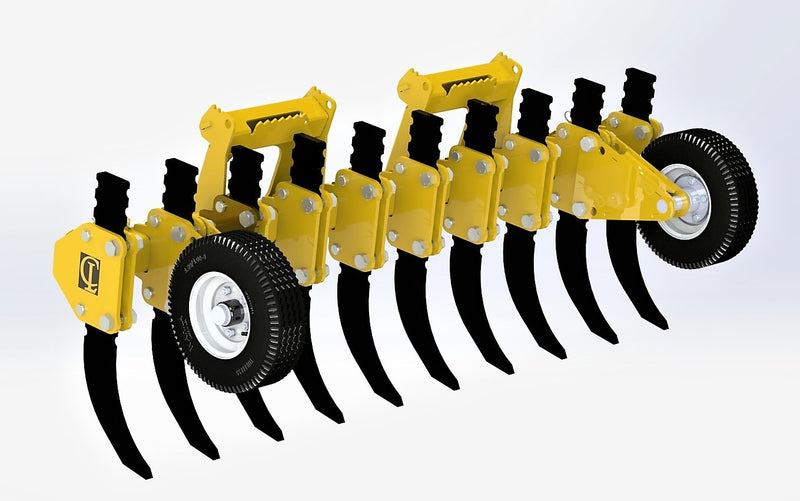

| Optional Accessories | Bolt-On Adjustable Skid Shoes, Adjustable Gauge Wheels, Bi-Directional Tooth Upgrade |
| Applications | Soil Scarifying, Root Removal, Stump Removal, Land Clearing & Site Preparation |
