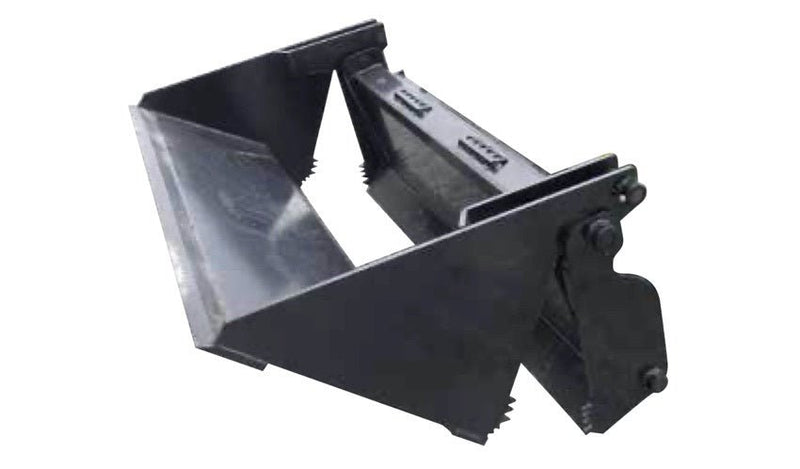

Blue Diamond Attachments 4‑in‑1 Bucket
The Blue Diamond Attachments 4‑in‑1 Bucket is a versatile and rugged multi‑function tool engineered to maximize productivity on skid steer loaders and compact track loaders. Combining four essential functions — bucket, grapple, dozer blade, and back‑drag edge — into a single attachment, it lets operators dig, load, clamp, push, and fine‑grade without changing tools. Built for long‑term performance and durability, the 4‑in‑1 Bucket is ideal for construction, landscaping, land clearing, material handling, and agricultural applications.
Constructed with heavy‑duty components such as dual hydraulic cylinders, oversized greaseable pins, and wear‑resistant steel, the Blue Diamond 4‑in‑1 Bucket delivers dependable strength and smooth operation. Multiple width options with smooth or toothed edges provide flexibility for different jobsite requirements. With smart hose routing to protect hydraulic lines and optional bolt‑on edges and teeth, this attachment enhances control, customization, and versatility for a wide range of tasks.
Features & Benefits:
- Four Tools in One: Combines bucket, grapple, dozer blade, and back‑drag edge to eliminate unnecessary attachment changes.
- Multiple Width Options: Available in 66″, 72″, 78″, and 84″ to suit various machine sizes and job needs.
- Heavy‑Duty Construction: 1/4″ reinforced floor and 1/2″ side plates for durability in tough conditions.
- Dual Hydraulic Power: Dual 2.5″ bore x 8″ stroke cylinders deliver strong, smooth operation.
- Replaceable Wear Edges: AR400 steel cutting edges and bolt‑on rear edges resist wear and extend service life.
- Customizable Configuration: Optional weld‑on shanks, teeth, and bolt‑on front cutting edges for specialized tasks.
- Greaseable Pivot Points: Oversized greaseable hinge pins and pivot points for easier maintenance and longevity.
- Operator Convenience: Universal skid steer mount and treaded step plate for safe access and versatile fitment.
Specifications:
| Specification | Details |
|---|---|
| Brand | Blue Diamond Attachments |
| Product Name | 4‑in‑1 Bucket |
| Attachment Type | Skid Steer / CTL Multi‑Function Bucket |
| Available Widths | 66″, 72″, 78″, 84″ |
| Struck Capacity | 13.9 – 17.7 cu ft |
| Weight Range | 862 – 1,004 lbs |
| Hydraulic Cylinders | Dual 2.5″ Bore × 8″ Stroke |
| Deck Construction | 1/4″ Reinforced Floor, 1/2″ Side Plates |
| Cutting Edge | Heavy‑Duty 3/4″ × 6″ AR400 Front Edge |
| Rear Edge | 5/8″ × 6″ AR400 Bolt‑On Reversible Double Dozer Edge |
| Optional Edges & Teeth | Weld‑On Shanks & Teeth Available |
| Hinge Pins & Pivot Points | 1.5″ Thick, Greaseable |
| Mount Type | Universal Skid Steer Mount |
| Step Plate | Treaded for Safety |
| Warranty | Standard Manufacturer Warranty |
