Baumalight SWF560-D530 SkidWing
Authorized Baumalight Dealer
Ensuring quality backed by full manufacturer warranty & support.

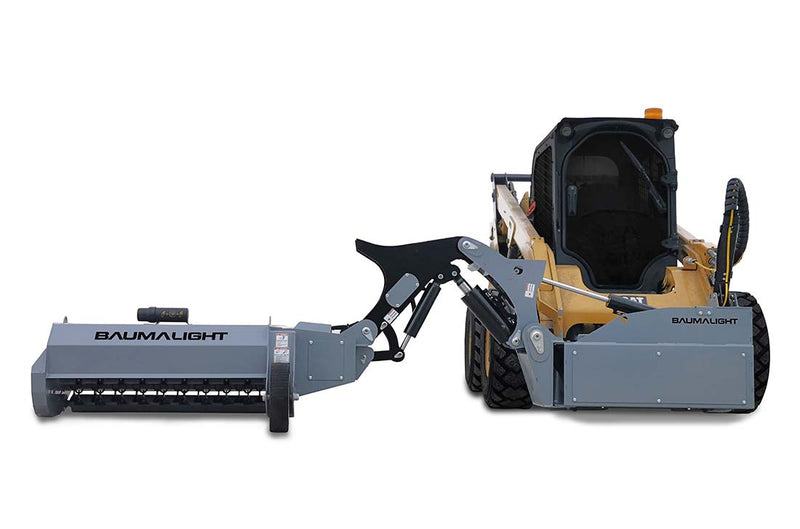

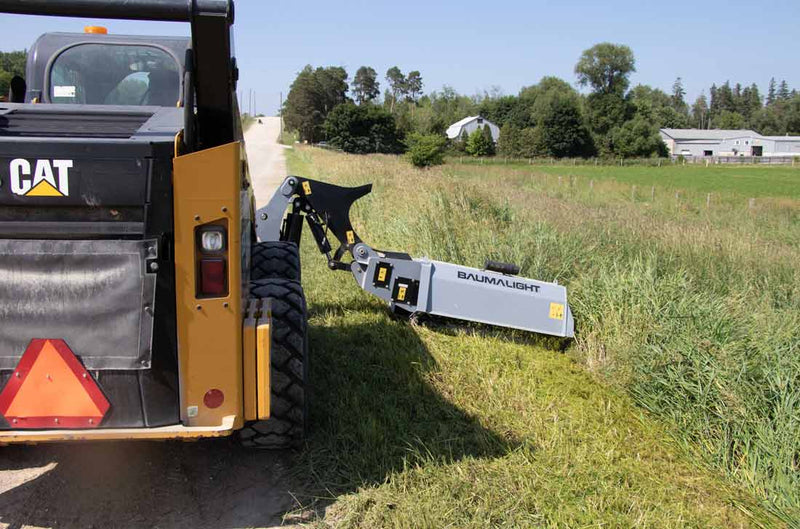

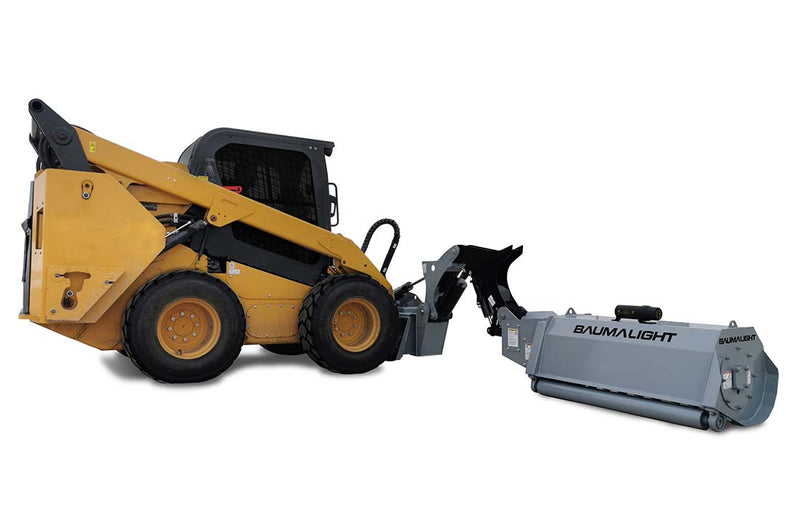

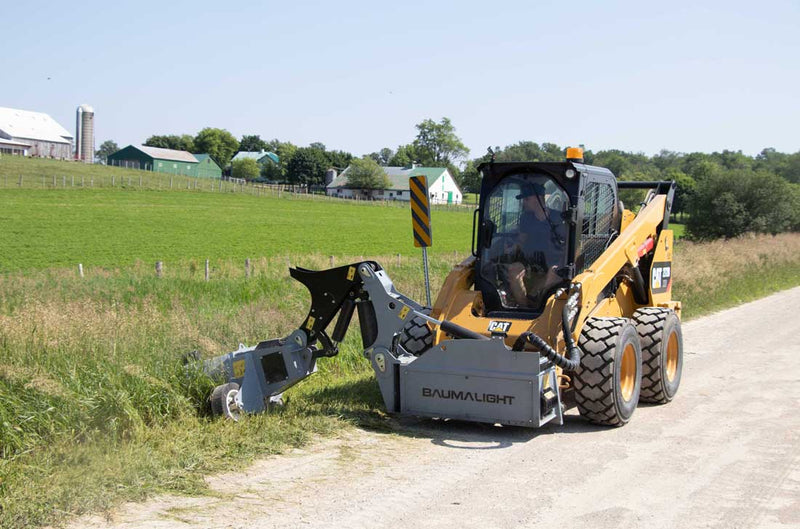

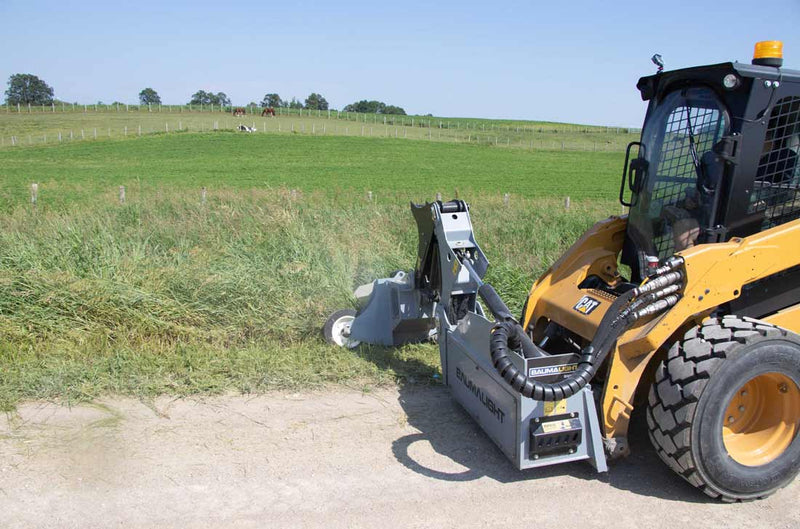

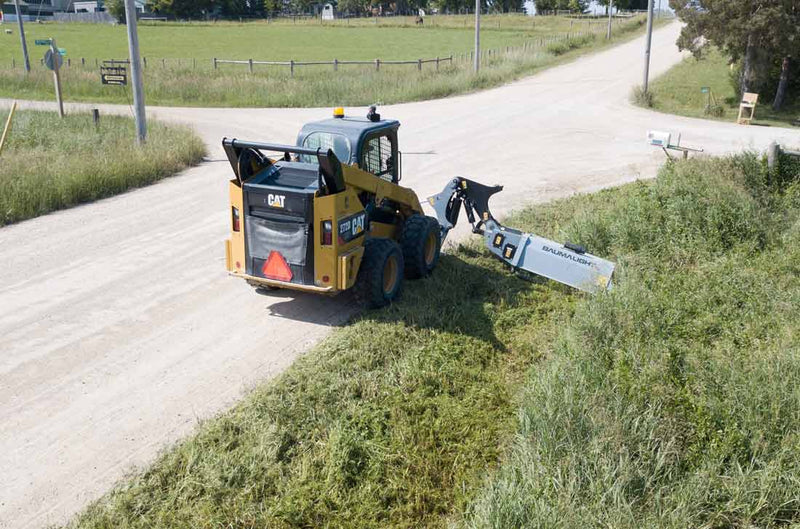

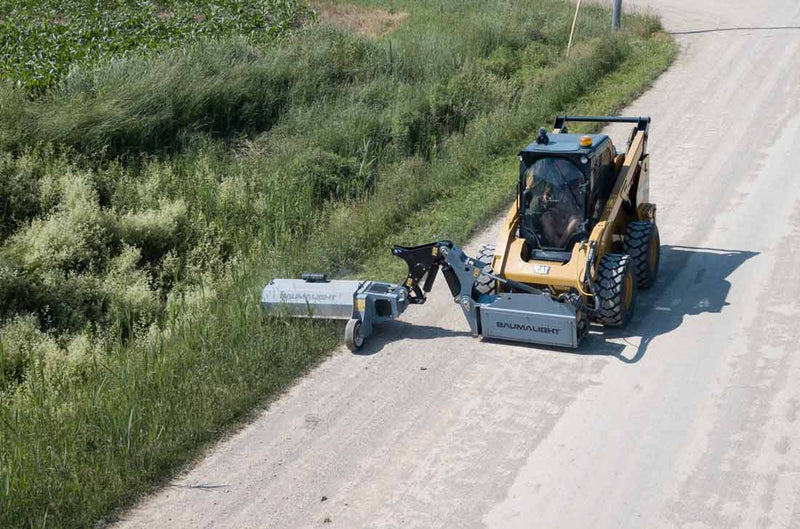

The Baumalight SWF560‑D530 2048 SkidWing is a heavy‑duty skid steer boom flail mower attachment engineered to tackle tough roadside, ditch, fence line and open field vegetation management tasks. Featuring a robust 48‑inch flail cutting head and a powerful D530 bent‑axis hydraulic motor, this mower delivers consistent, reliable performance across thick grass, brush and light woody growth up to ~2″ in diameter. Its Boom & Stick dual‑segment configuration provides up to 10 feet (120″) of horizontal reach and full angle control, making it easy to mow steep banks, slopes and hard‑to‑access areas without repositioning your skid steer. Built for medium‑to‑large skid steer loaders and compact track loaders (min. 6,000 lbs), the SWF560‑D530 combines heavy‑duty construction, smooth operation and excellent coverage to boost productivity and overall vegetation control efficiency.
Features & Benefits
- Extended 10‑ft Boom Reach: Dual‑segment Boom & Stick provides up to 120″ horizontal reach and precise angle control on slopes, ditches, and embankments.
- 48″ Flail Cutting Head: Wide cutting width speeds up vegetation clearing and improves coverage per pass.
- D530 Bent‑Axis Hydraulic Motor: High‑efficiency power unit delivers smooth, powerful cutting performance using your skid steer’s auxiliary flow.
- Handles Thick Vegetation: Capable of slicing through grass, brush and woody stems up to ~2″ in diameter.

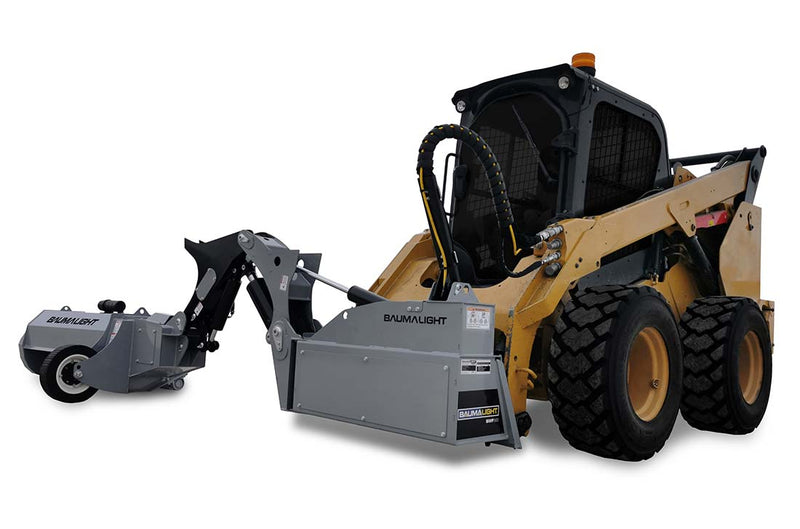

- Floating Deck Support: Solid, flat‑free tire and floating steel roller reduce load on the skid steer while following ground contours for smoother mowing.
- Replaceable Flail Blades: Standard F2000 series flail teeth are bolt‑on for easy field replacement; optional heavy‑duty F3000 blades available.

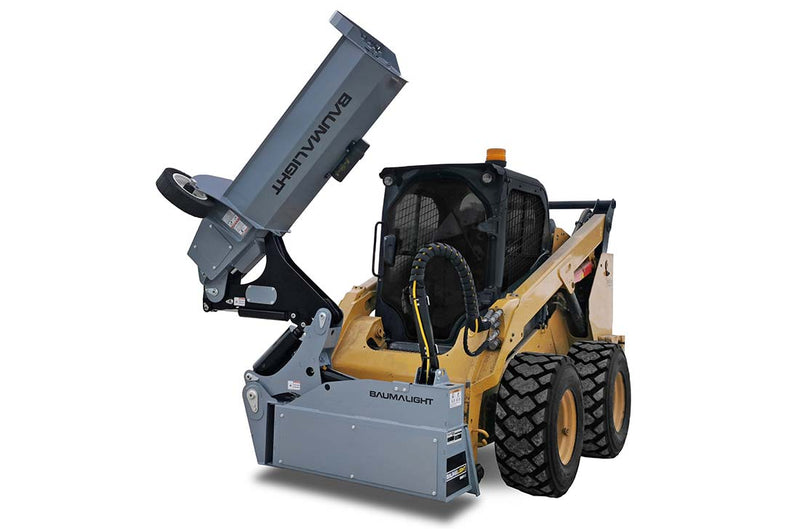

- Fold‑Up Boom for Transport: Boom arm folds flat against the frame for safe trailering and easy navigation in tight spaces.
- In‑Cab Control Compatibility: Works with standard 14‑pin electrical connections and integrates with factory joystick controls or optional Baumalight cab control box.
Specifications
| Specification | Detail |
|---|---|
| Model | Baumalight SWF560‑D530 2048 SkidWing |
| Attachment Type | Skid steer boom flail mower |
| Cutting Head Width | 48″ |
| Maximum Horizontal Reach | Approx. 10 ft (120″) |
| Hydraulic Motor | D530 bent‑axis piston motor |
| Hydraulic Flow Requirement | Approx. 20–40 GPM auxiliary flow |
| Carrier Requirement | Medium to large skid steer or compact track loader (min. ~6,000 lbs) |
| Blade Type | F2000‑series flail blades (replaceable) |
| Vegetation Capacity | Grass, brush & woody growth up to ~2″ |
| Deck Support | Floating deck with solid flat‑free tire & steel roller |
| Mounting | Universal skid steer quick‑attach |
| Transport | Boom folds flat against frame for trailering |
| Control Options | 14‑pin electrical with factory joystick or optional cab control |
| Construction | Heavy‑duty reinforced steel frame & boom |
| Hydraulic Hose Protection | Armored/sleeved service lines |
