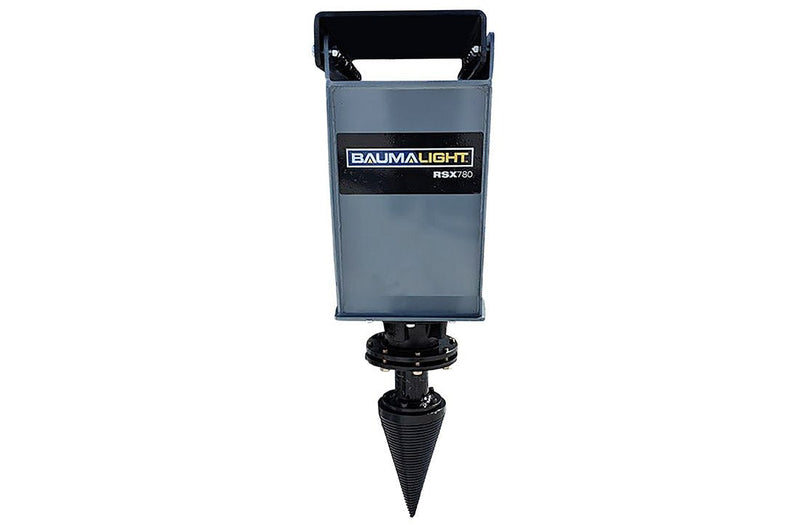

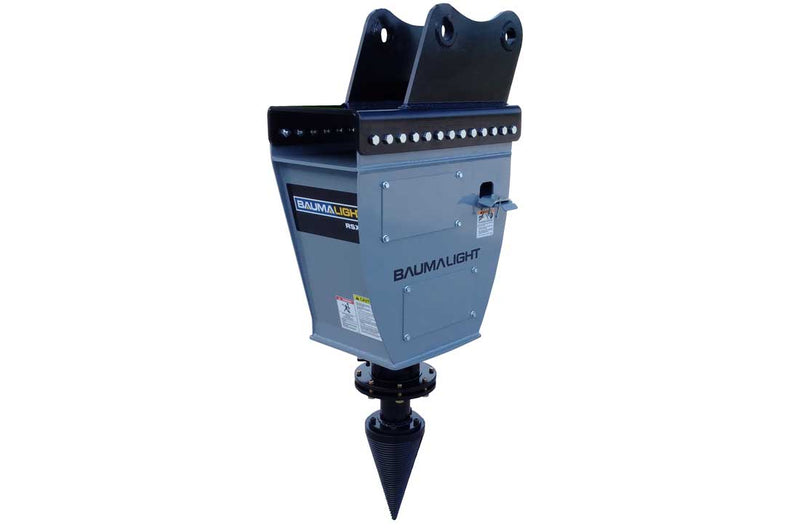

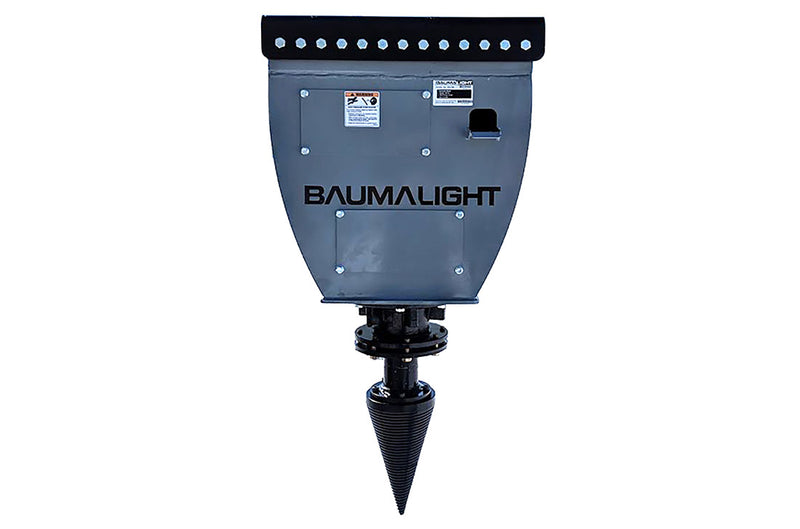

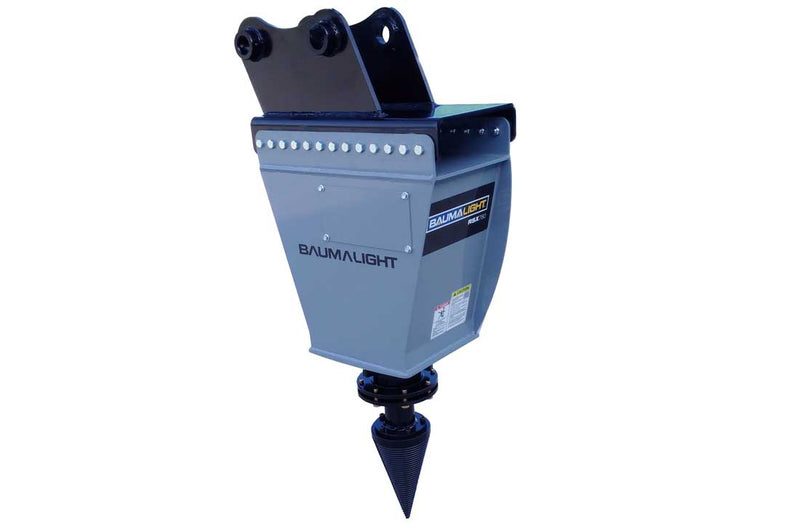

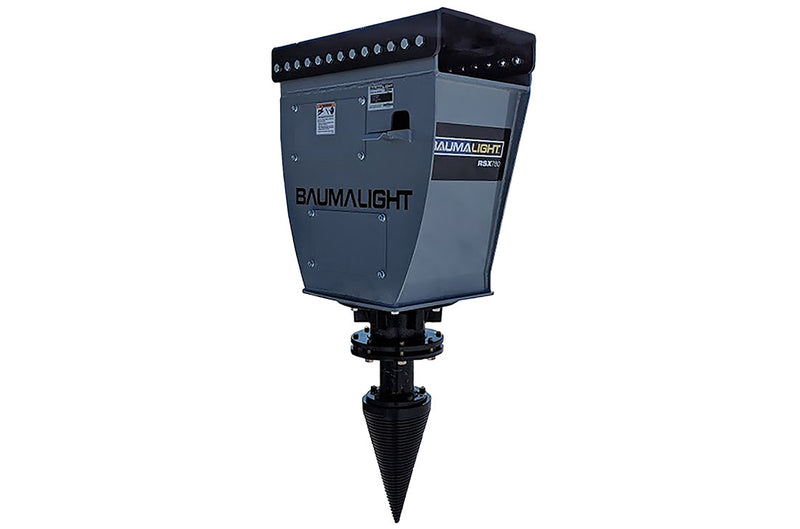

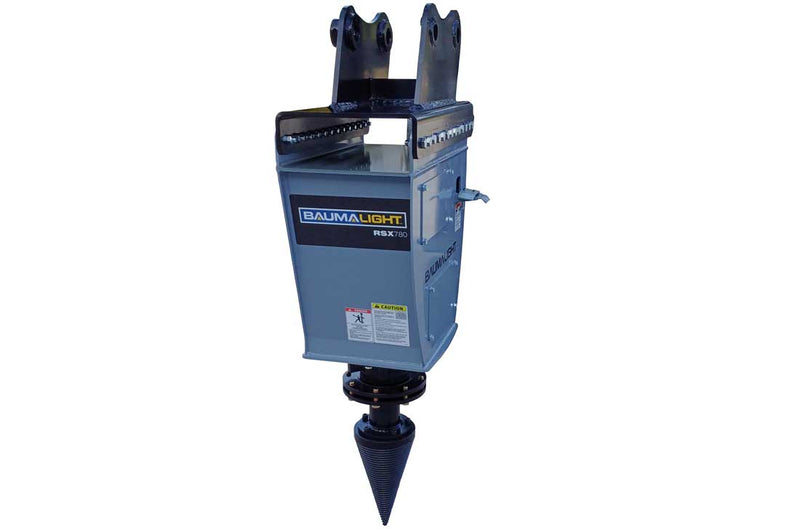

Baumalight RSX780 Log Splitter
Authorized Baumalight Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Baumalight RSX780 is a heavy-duty log splitter designed for excavator mounting, capable of handling logs up to 20 ft long. Powered by a hydraulically-driven planetary motor, it delivers exceptional torque to the helical-screw splitting head. The dual-spiral steel bit bores into logs efficiently, allowing horizontal or vertical splitting. Its robust construction, integrated protective flange, and replaceable hardened tip ensure long-lasting performance in demanding forestry and wood-processing applications.
Key Features:
- Heavy-Duty Build: Durable encasement for long-lasting use.
- Protective Powder Coat Finish: Shields the tool from corrosion and wear.
- Planetary Drive: Hydraulically-driven motor delivers up to 3,800 ft/lbs torque.
- No 12V Electric Required: Quick and easy hydraulic connection.
- Main Shaft Seal Protection: Prevents debris damage to bearings.
- High Splitting Force: Greater than cylinder-based splitters at similar pressure.
- One-Person Maneuvering: Operate without leaving the cab.
- Hardened Replaceable Tip: Extended wear and simple replacement.
- Bolt-On Excavator Adaptor: Allows versatility across different excavators.
- Heavy-Duty 8-Bolt Flange Bit Holder: Secure and stable bit mounting.
- Pressure Gauge: Monitor load during operation.
- Piston Motor: Reciprocating design maximizes torque efficiently.
Specifications:
| Feature | RSX780 |
|---|---|
| Baumalight Connection Code | A03 |
| Splitting Tool | 8-bolt flange mount 14×8 splitter cone (D003935) |
| Adaptor | Bolt on |
| Carrier Weight for Planer | 15 ton max |
| Carrier Weight for Splitter | 18 ton max |
| Recommended GPM | 20–55 |
| Max GPM | 65 |
| Recommended PSI | 2500–4500 |
| Max PSI | 5000 |
| Drive Size | 8 Bolt Flange |
| Drive Type | Planetary |
| Hoses Included | No |
