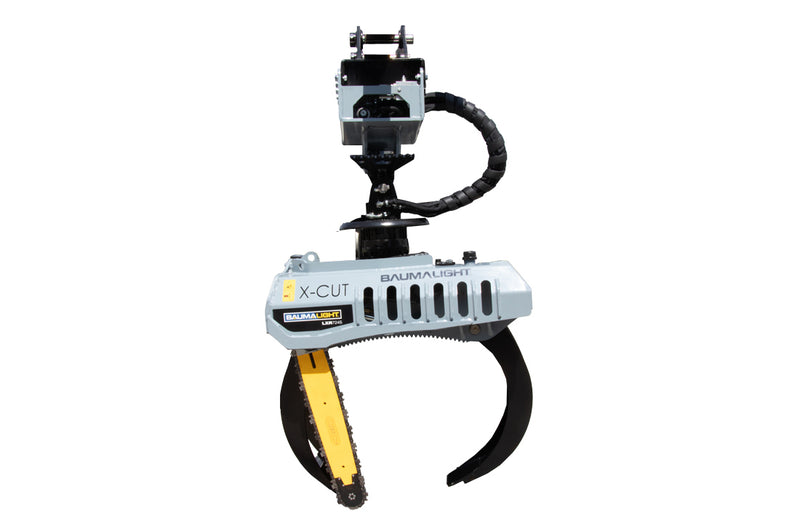

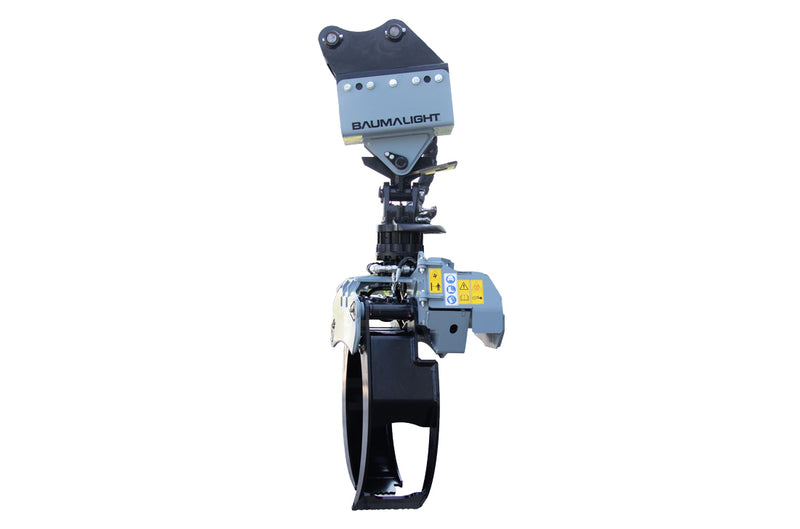

Baumalight LXR724S Grapple Saw – Excavator Attachment
Authorized Baumalight Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Baumalight LXR724S is an Excavator mounted grapple saw that is very similar to our skidsteer version, they clamp and cut logs to length which can be a even greater time and labor saver because of the natural reach and versatility that comes with an excavator, this attachment is engineered with heavy-duty components and AR400 steel jaws.
The LXR724S features a powerful integrated saw blade, giving you both a firm grip and cutting capability without getting out of the excavator. Its full 360° rotating function enables maximum maneuverability, while the heavy-duty jaw operating cylinder provides the force needed for confident clamping. For enhanced protection and longevity, hydraulic hoses are armoured and sleeved, and key access points are designed for easy maintenance. The grapple also includes a built-in oil tank, ensuring efficient hydraulic fluid management and helping reduce downtime.
Every design element of the LXR724S is focused on ease of serviceability: from structural strength and abrasion protection to ease of upkeep and flexibility in operation. Whether lifting, gripping, cutting, or loading, this grapple is your go-to solution for professional work in rough terrain or large-scale timber environments.
Features & Benefits
- Serrated Grapple: The serrated grapple arms provide a firm hold on uneven and irregular loads. This ensures logs, brush, and debris are securely clamped, reducing slippage and boosting operator efficiency.
- Integrated Saw Blade: A powerful built-in saw blade allows quick and efficient cutting of logs and branches. This reduces the need for extra handling, saving time during forestry and land clearing operations.
- Built-In Oil Tank: The integrated oil tank delivers a reliable supply of lubrication for hydraulic systems. This design helps maintain consistent performance while reducing maintenance requirements.
- Oil Level Indicator: The built-in oil level indicator allows operators to quickly monitor hydraulic oil levels at a glance. This simplifies routine maintenance, helping ensure optimal performance and reducing unnecessary downtime.

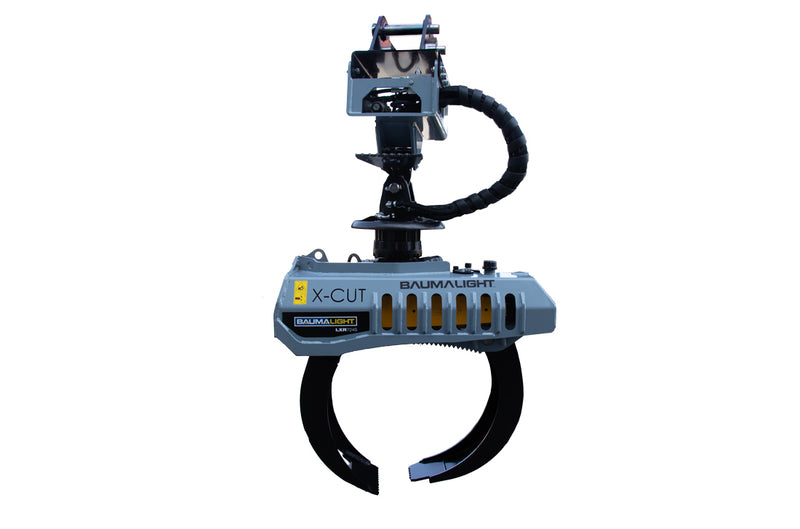

- Armoured & Sleeved Hydraulic Hoses: All hydraulic hoses are fully protected with armour and sleeves for maximum durability. This prevents damage from debris and wear, extending service life even in rugged conditions.
- Heavy-Duty Jaw Operating Cylinder: The robust jaw cylinder provides strong clamping force for gripping large logs securely. Its heavy-duty design ensures long-lasting performance under tough working environments.

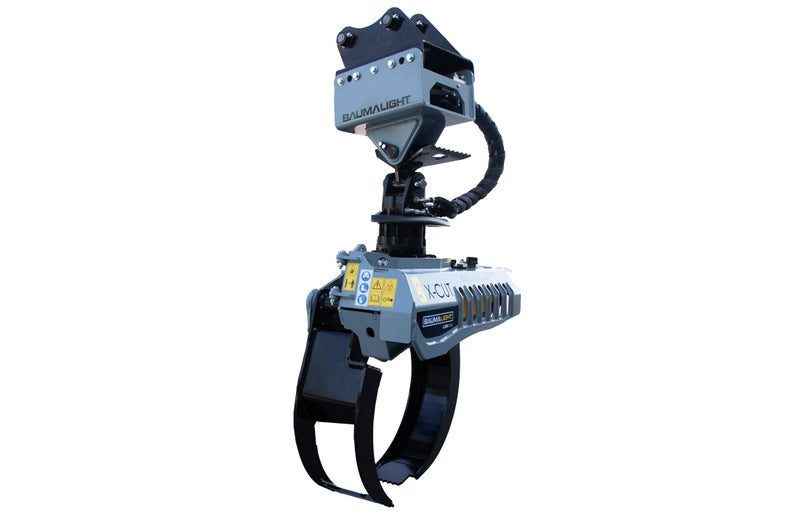

- Full 360° Rotating Function: The grapple can rotate a full 360 degrees, giving the operator complete maneuverability. This feature makes positioning and handling logs faster and more efficient in tight spaces.
- Hydraulic Cylinder for Saw Blade Actuation: A dedicated hydraulic cylinder powers the saw blade with precision and strength. This ensures reliable cutting performance while maintaining operator control.
- Durable Powder-Coated Finish: A premium powder-coated finish protects against rust, chips, and harsh weather. This durable coating keeps the grapple looking and performing like new over time.
-
AR400 Steel Jaws & Main Frame: Constructed from AR400 high-strength steel, the jaws and frame deliver maximum toughness. This ensures long wear life and resistance to bending or breaking in heavy-duty use.
- Grease Pins on all Pivot Points: The Grapple Saw features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
-
Hardened Steel Bushings: Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Specifications
| Feature | Specification |
|---|---|
| Rotation | 360° |
| Excavator Weight Range | 6 - 20 ton |
| Oil Flow | 25 - 42 GPM |
| Torque at 25 MPA | 3400 Nm (2508 lb-ft) |
| Clamp Force at 3,000 PSI | 13199 lbs |
| Clamp Force at 4,000 PSI | 17599 lbs |
| Operating PSI | 2,500–4,000 |
| Minimum Opening Diameter | 3″ |
| Maximum Opening | 72″ |
| Minimum/Maximum Log Holding Size | 3–24″ |
| Width | 46″ |
| Total Height | 72″ |
| Weight | 1038 lbs |
