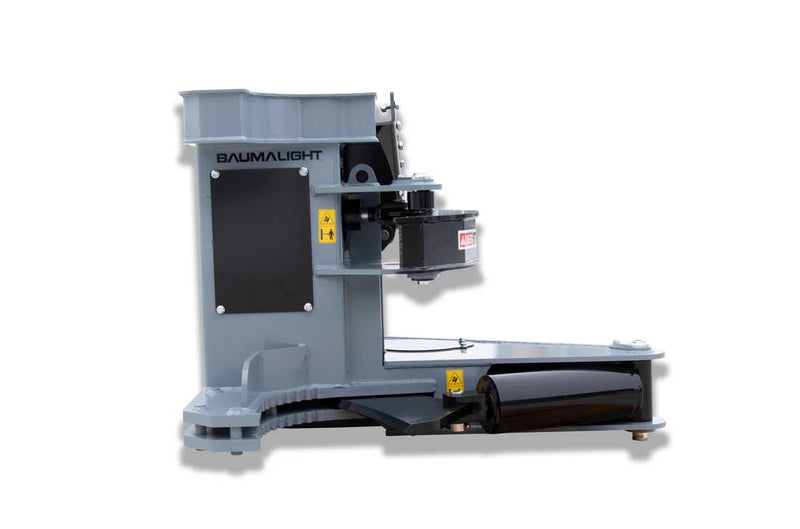

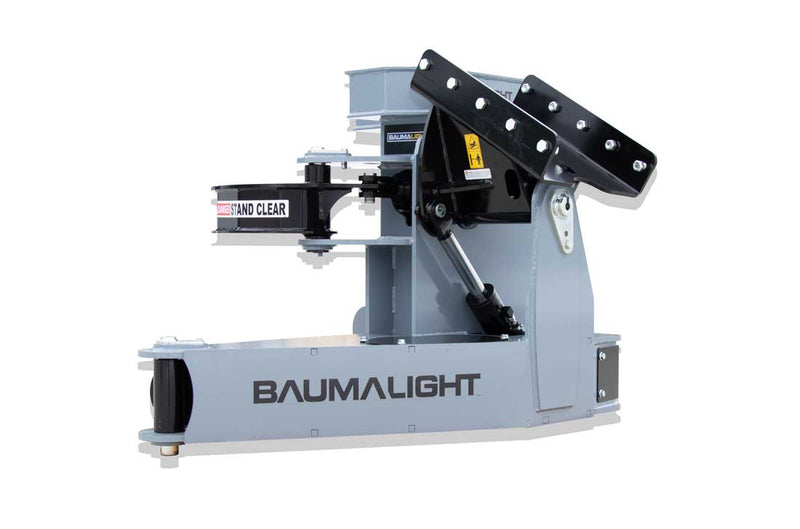

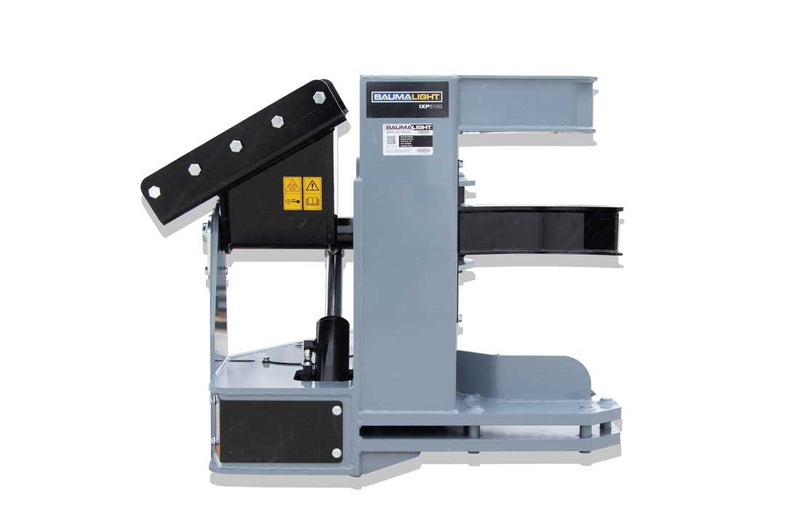

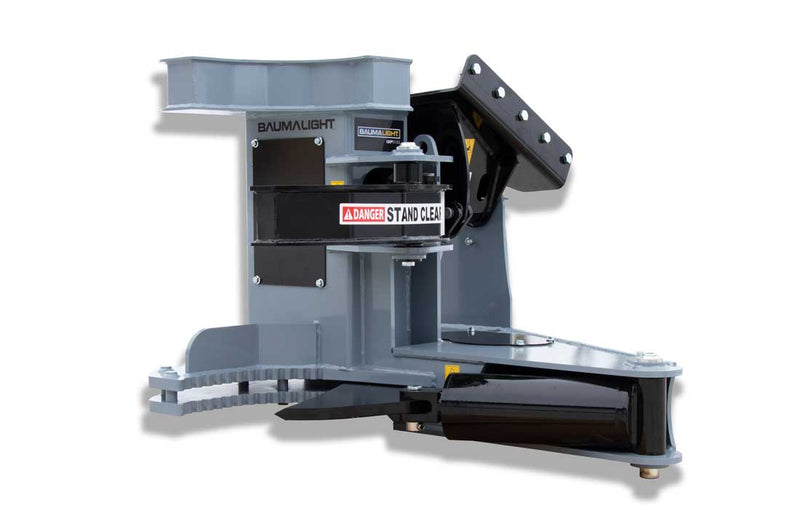

Baumalight IXP510G 90° Rotating Excavator Tree Shear
Authorized Baumalight Dealer
Ensuring quality backed by manufacturer warranty & support.
The Baumalight IXP510G Excavator Tree Shear is a heavy‑duty vegetation management attachment engineered for 5 – 15 ton excavators. Featuring a full 90° pivoting shear head, it delivers versatile cutting performance whether felling trees upright or trimming limbs horizontally. Built with rugged, abrasion‑resistant AR400 steel and a powerful hydraulic system, this shear handles a wide range of softwoods and hardwoods with confidence. Integrated grabber arms and a fixed curved cradle bar securely hold and transport cut material, increasing efficiency on land clearing jobs.
Features & Benefits
- 90° Pivoting Shear Head: Offers flexible cutting orientation for upright tree felling or horizontal limb trimming, improving job site efficiency.
- Durable AR400 Steel Blade: High‑strength abrasion‑resistant steel blade material provides long life and dependable cutting performance in tough conditions.
- Secure Grabber System: Individually moving grabber arm plus fixed cradle bar help secure and reposition cut limbs safely.
- Heavy‑Duty Hydraulic Power: Designed for 10 – 40 GPM hydraulic flow to optimize cutting force for trees up to 10″ (25 cm) diameter.
- Protected Hose Routing: All hydraulic hoses are internally routed and sleeved with armour for extra protection against pinch and abrasion.
- Greaseable Pins & Hardened Bushings: Pivot points feature greaseable pins and high‑grade chrome‑vanadium bushings for extended service life and easy maintenance.
- Bolt‑On Mounting Plate: Strong and flexible mounting interface allows easy attachment to compatible excavator mounts.
Specifications
| Specification | Details |
|---|---|
| Model | IXP510G |
| Carrier Type | Excavator |
| Blade Angle | Pivoting (90° rotation) |
| Blade Cylinder Bore | 5″ |
| Suitable Excavator Weight | 5 – 15 ton |
| Maximum Limb Size | ~10 in (25 cm) |
| Grabber | Yes (individually moving) |
| Required Hydraulic Flow | 10 – 40 GPM |
| Electrical AUX | 1 ON/OFF + ground pin required |
| Approx. Unit Weight | ~900 lb (408 kg) |
| Blade Material | AR400 abrasion‑resistant steel |
| Hose Protection | Internal sleeving and armour |
