Baumalight HSM513 Manual Rotation Tree Saw with Extended Boom for Skidsteers
New Equipment from Baumalight
Ensuring quality backed by manufacturer warranty & support.

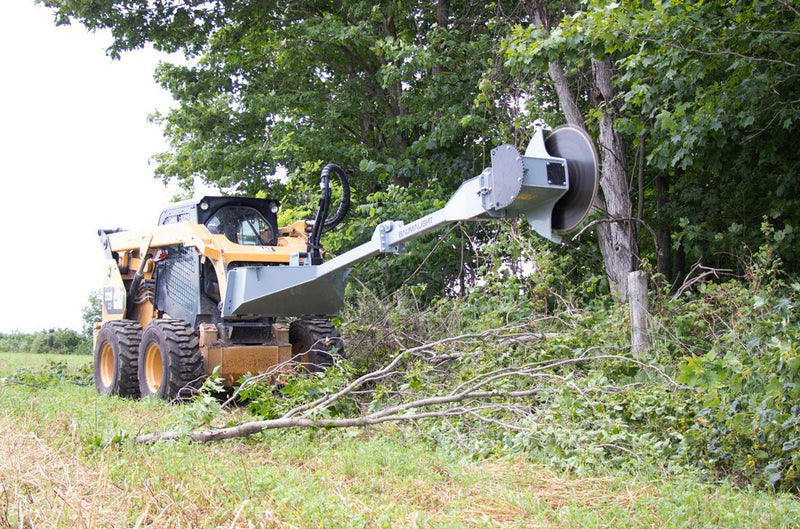

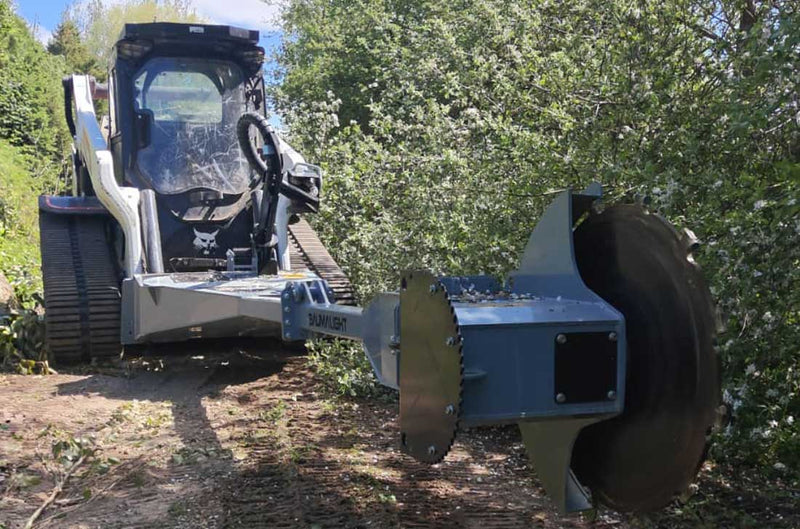

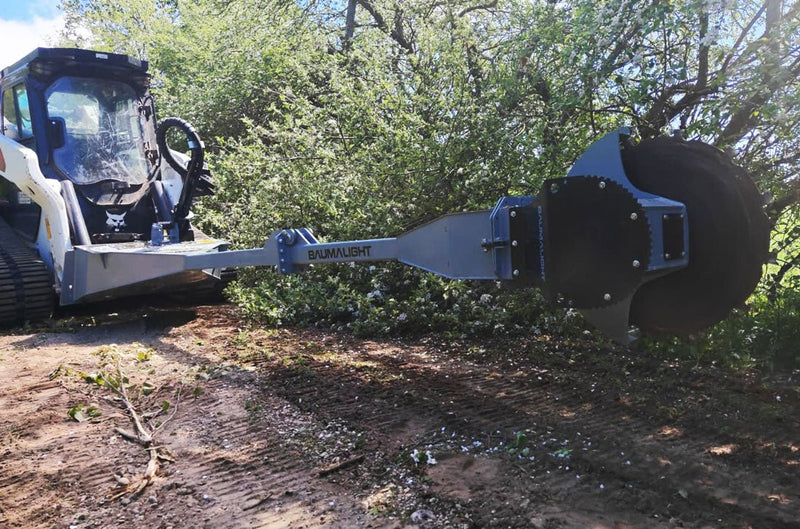

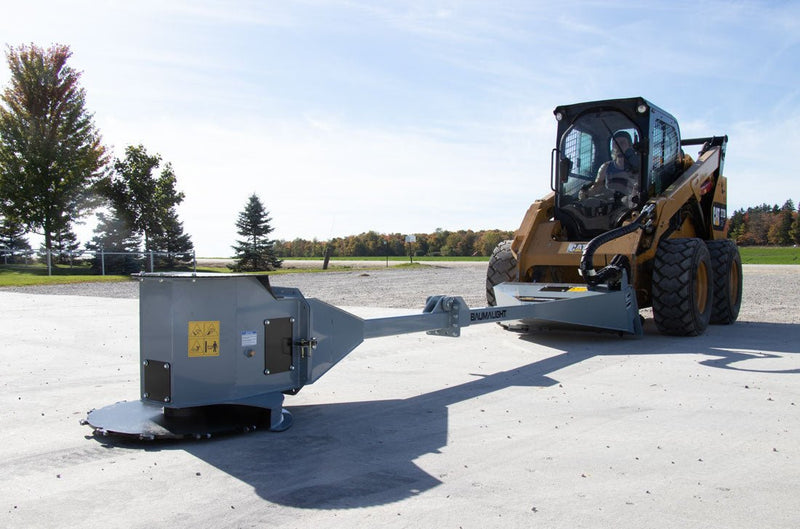

Aggressively remove overhanging limbs long fence lines on your farm, or small trees and dense brush from your rural property with the HSM513 long Tree Saw. Designed for skidsteers, the HSM513 is a hydraulically-driven tree saw that can be manually rotated to cut in either horizontal or vertical position. The heavy-duty construction of the Baumalight tree saw includes a solid serrated front push bar, ideal for guiding limbs, branches and small trees safely away from the operator. Assuring a long life of cutting, the HSM513's circular blade features replaceable carbide-tipped teeth and is built with abrasion-resistant AR-400 steel.

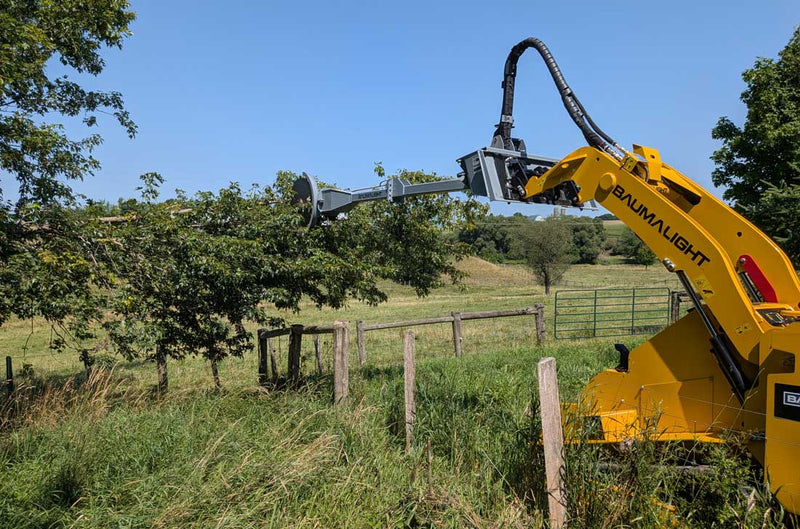

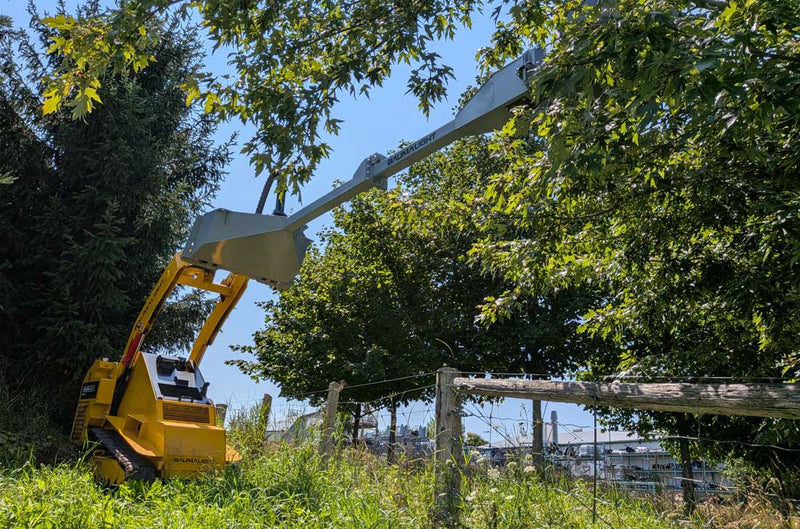

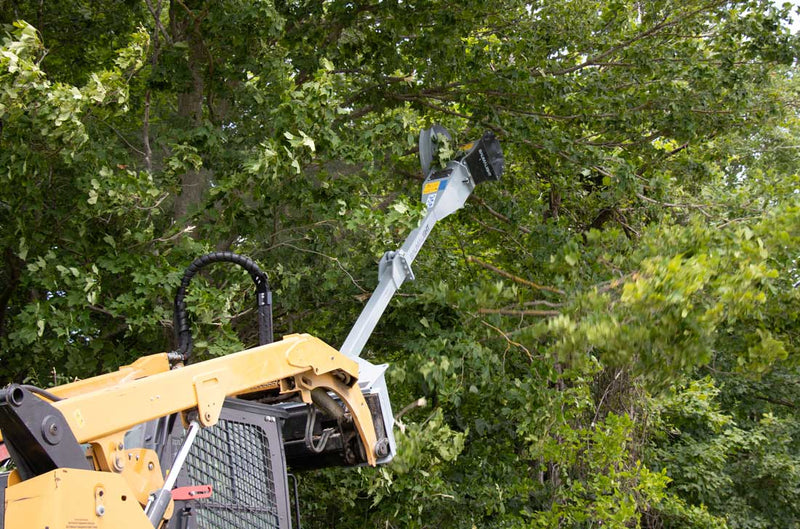

What sets this model apart is an extended reach of 168” so you can go high up to clear the way for ever larger farming equipment or open up spaces on rural property. The boom folds over for more compact storage at the dealer and transport from the factory.
Features & Benefits
- MANUAL ROTATING CUTTING HEAD: Effectively switch from horizontal tree cutting position to vertical trimming and limbing position with the 90 degree manual rotating head. Simply remove the 8 bolts at the base of the cutting head, rotate the unit 90 degrees to the left or the right and then secure the bolts.
- Heavy duty build: The tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.
- Clean Cuts: The tree saw makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.
- Mount Angle: DropSaw's skidsteer plate is on a roll back angle. This gives you even more flexibility to successfully trim areas that are difficult to reach.
- Saw blade shielding: The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.
- Blade mounted on heavy duty bearing support: The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.
- FRONT PUSH BAR: A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.
- AR400 STEEL BLADE: The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.
-
HIGH SPEED TEETH: The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
- 6 FREE TEETH: All HSM513 Tree Saw come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
-
EASY TEETH CHANGING: The high speed teeth design allows for easy rotation and changing of the teeth as needed.
- Designed for maximum visibility: Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.
Specifications
| Feature | Specification |
|---|---|
| ADAPTOR | UNIVERSAL SKIDSTEER |
| Blade Angle | 180° |
| Rotation | Bolt-on |
| Actuator | Manual |
| Operating Length | 168" |
| GPM | 10-40 |
| PSI | 4,000 |
| Electrical AUX | Not required |
| Requires Case Drain | Yes |
| Hydraulic Hose | Supplied |
| Motor Type | Bend Axis Piston |
| Motor Cc | 52 |
| Motor Option | T530 |
