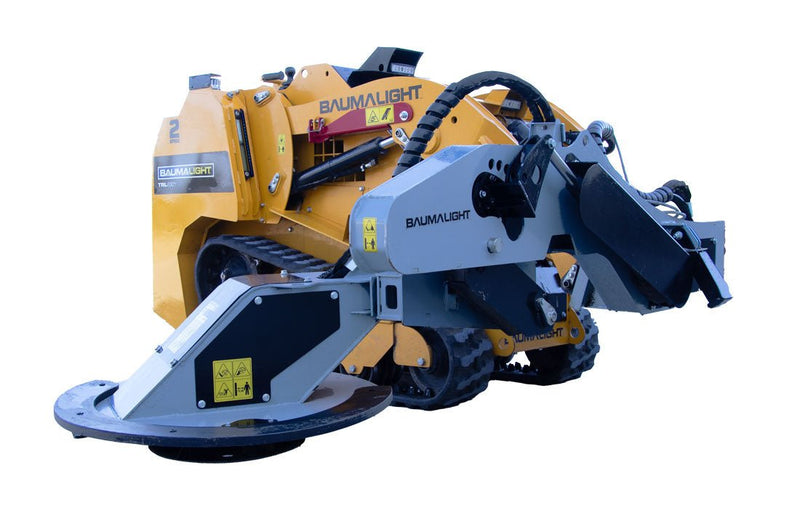

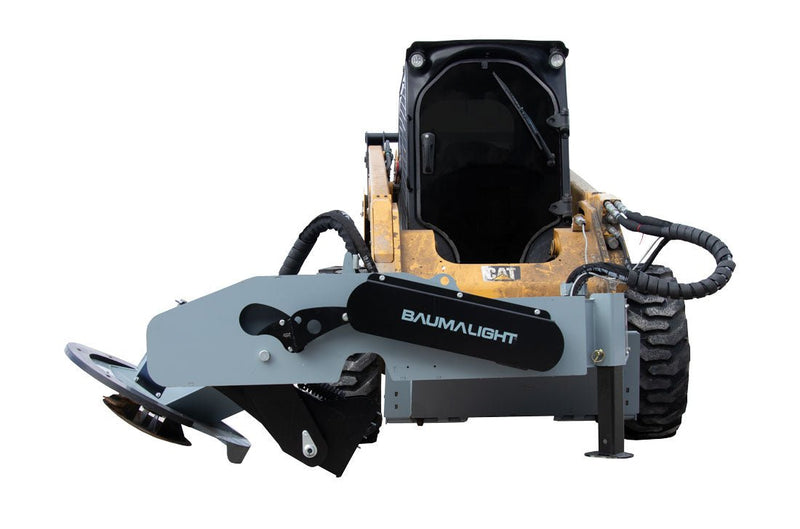

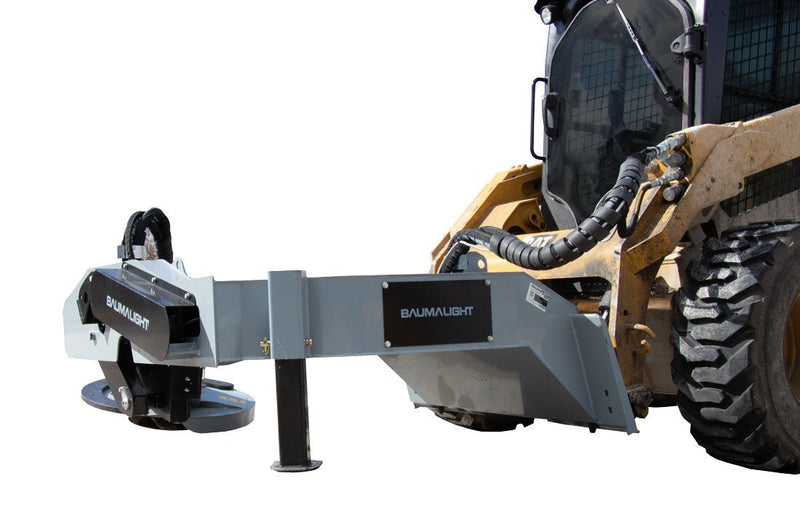

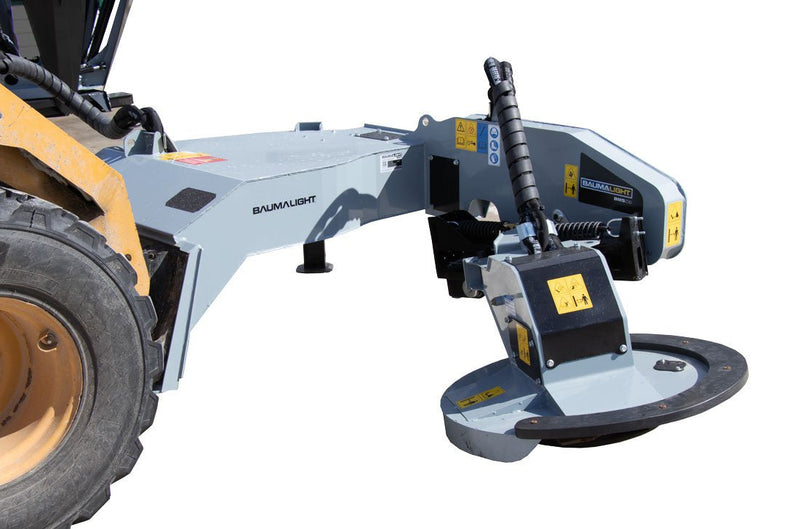

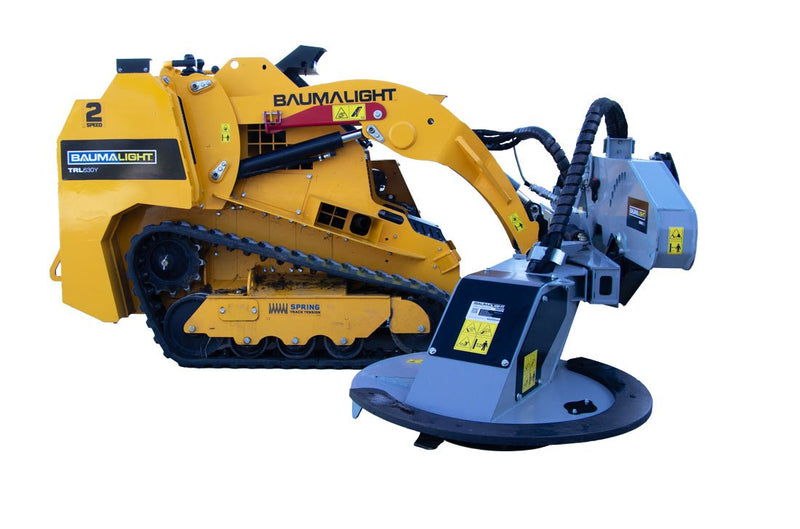

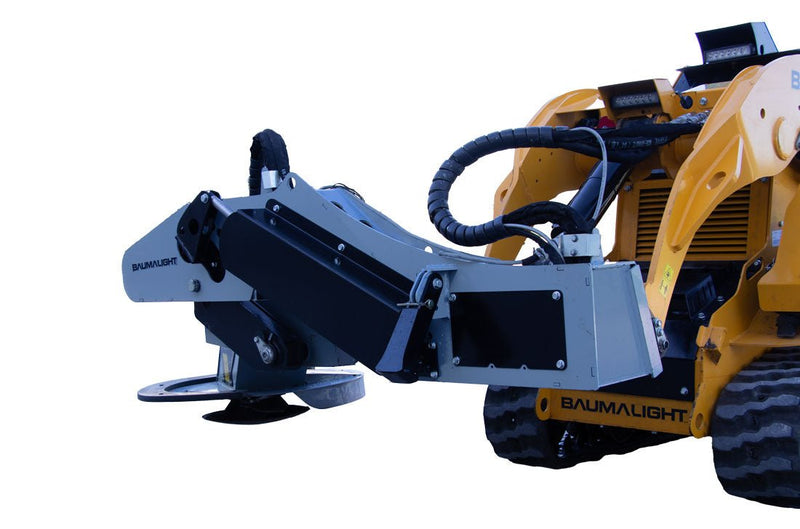

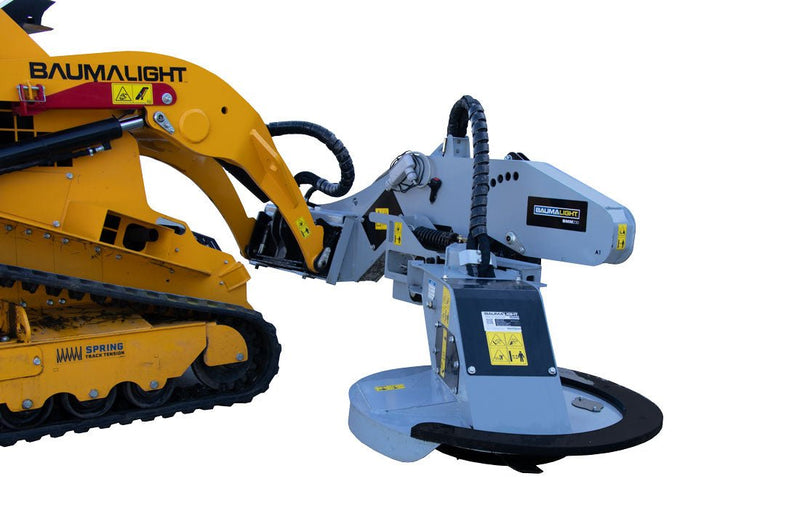

The Baumalight BMM230-C508 is a purpose-built hydraulic mini barrier mower attachment engineered exclusively for mini skid steers. Capable of efficiently cutting through long, heavy grass and small-diameter brush, the BMM230 is ideal for maintaining fence lines, guardrails, orchards, and vineyards — the kinds of confined, obstacle-heavy corridors where conventional mowers simply cannot reach. Baumalight Barrier Mowers are manufactured in Canada and backed by a network of local equipment dealers across North America, making this attachment a reliable long-term investment for land care professionals, road maintenance crews, and agricultural operators alike.

What sets the BMM230 apart is its intelligent design for real-world obstacle navigation. The spring-loaded assembly easily manoeuvres around obstacles such as fence posts, crash barriers, or trees, automatically deflecting and returning to position without the operator needing to stop or reposition the carrier. The rear side features a 30" open mouth protected by a sheet metal guard that helps discharge cut material safely away from the operator. The C508 configuration pairs with Baumalight's industry-leading bent axis piston motor, which makes the most efficient use of available hydraulic flow and pressure — effectively doubling the output power of standard flow machines within the 8–15 GPM operating range.

Built for durability and ease of maintenance in the field, the BMM230 comes standard with a manual angle adjustment that can be upgraded with an optional electric actuator — a particularly useful feature for operators working rolling terrain. The slasher blades are crafted from 1/4" AR400 steel, with a unique reversible profile that continuously provides a sharp cutting edge, and every new unit ships with a free set of replacement blades secured to the shipping skid. Hydraulic hoses are armoured and sleeved, with a pivoting arm and greaseable pin keeping slack out of the way to protect hoses from dangerous pinching and strain — a level of detail that speaks to the BMM230's design for sustained, heavy-use operation.

• Mini Skid Steer Optimised — Uses the common industry mini skid steer mount plate for quick, tool-free attachment; also compatible with an optional D006290 Bobcat cheater adapter plate for Bobcat mini skid steer owners.
• Spring-Loaded Obstacle Bypass — Automatically manoeuvres around fence posts, crash barriers, trees, and other obstructions, then returns to cutting position without operator intervention — maximising productivity along complex fence lines and roadway barriers.
• AR400 Reversible Slasher Blades — Crafted from 1/4" AR400 steel with a unique profile that provides increased cutting surface and a continuously sharp, reversible edge for extended blade life and reduced replacement frequency.
• 2-Way Rotor Assembly — Features a durable one-piece rotor constructed from a single 3/4" steel plate with a slasher blade on each end, delivering up to 26 slashes per second for fast, efficient vegetation clearing.
• Bent Axis Piston Motor (C508) — Industry-leading bent axis piston motors make the most efficient use of hydraulic flow and pressure, capable of doubling output power within the 8–15 GPM standard-flow operating window.
• Operator Safety — Sheet Metal Discharge Guard — A sheet metal curtain and back safely directs flying debris away from the operator throughout the cutting cycle.
• Case Drain with Vent-to-Atmosphere Relief — Prevents pressure relief activation on the motor seal; if the case drain connection is missed or blocked, the vent will notify the operator — protecting the shaft seal and avoiding unexpected downtime.
• Armoured & Sleeved Hydraulic Hoses — A pivoting arm with a greaseable pin keeps hose slack controlled, protecting hoses from pinching, strain, and impact damage during operation.
• Optional Electric Tilt Actuator (D007053) — The bolt-on electric actuator kit enables precise angle adjustments for rolling terrain, powered by the mini skid steer's 12V battery and recharging during repositioning for uninterrupted performance.
• Collapsible Leg — Built-in collapsible leg for safe, stable free-standing storage and transport when not mounted to a carrier.
• Free Replacement Blade Set Included — Every BMM230 ships with a free set of replacement blades conveniently secured to the wooden shipping skid.
• Chrome-Vanadium Spring Steel Bushings — Spring bushings made from high-grade chrome-vanadium AISI 6150 spring steel at all main pivot points, with zinc-plated greaseable pins for long-term corrosion resistance and smooth joint operation.
• Locally Available Parts — Designed using industry-standard components so bearings, seals, and other wear parts can be sourced from local suppliers, not just through Baumalight — minimising downtime in the field.

Specifications
