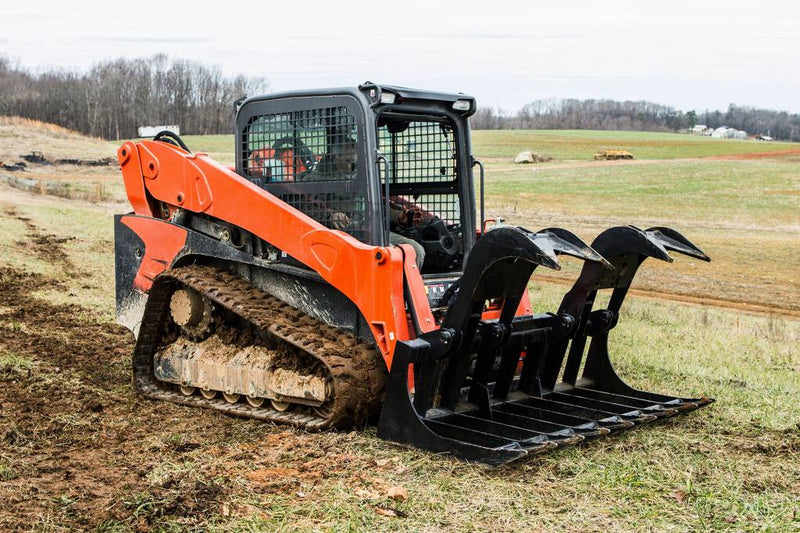

Loflin Fabrication Standard Duty Root Grapple
The Loflin Fabrication Standard Duty Root Grapple is a high-performance attachment designed for heavy-duty land clearing and material handling. Built to provide exceptional force and durability, this root grapple allows dirt to fall through while independently gripping materials with precision. With 9,500 lbs of grappling force and 2” x 10” cylinders, this grapple excels in removing roots, rocks, and debris with ease.
Constructed with 1/2” thick steel tines, the Loflin Standard Duty Root Grapple ensures long-lasting durability and superior performance. The reinforced quick attach system and fully protected hydraulic cylinders make this attachment both reliable and safe to use in challenging environments. The oversized, greasable 1 1/4” pins and fully greasable hinge points provide smooth operation for extended service life. With a 34.5” opening width and customizable tine spacing, the Loflin Standard Duty Root Grapple is an ideal tool for tasks requiring both precision and strength.
Features & Benefits:
- High Grappling Force: Delivers 9,500 lbs of grappling force for secure material handling.
- Independent Grapple Tines: Offers excellent control when grabbing and moving materials.
- Heavy-Duty Construction: 1/2” thick steel tines for maximum durability and strength.
- Reinforced Quick Attach: For secure connection to your equipment, ensuring smooth attachment changes.
- Fully Protected Hydraulic Cylinders: Provides extra protection against debris and damage.
- Oversized, Greasable Pins: Ensures smooth and reliable operation with minimal maintenance.
- Hydraulic Performance: Comes equipped with Parker brand hoses, fittings, and couplers for quick, job-site ready installation.
- Customizable Tine Spacing: 8.5” to 9” tine spacing with custom spacing available to meet specific needs.
- No Underground Damage: Slides along the ground without digging in, avoiding underground damage.
- Horsepower Compatibility: Works with equipment up to 75 horsepower for efficient performance.
Specifications:
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Standard Duty Root Grapple |
| Type | Heavy-Duty Root Grapple |
| Opening Width | 34.5” |
| Hydraulic Cylinders | 2” x 10” cylinders |
| Grappling Force | 9,500 lbs |
| Tine Thickness | 1/2” thick steel |
| Tine Spacing | 8.5” to 9” (custom available) |
| Pins | Oversized, greasable 1 1/4” pins |
| Quick Attach | Reinforced |
| Hydraulic Protection | Fully protected hydraulic cylinders |
| Greaseable Points | Fully greasable hinge points |
| Hydraulic Components | Parker brand hoses, fittings, and couplers (Jobsite ready) |
| Horsepower Compatibility | Up to 75 HP |
| Applications | Ideal for root and land clearing, debris handling, and more |
| Key Benefit | Offers superior force and durability for heavy-duty tasks with easy maintenance and minimal underground damage |
