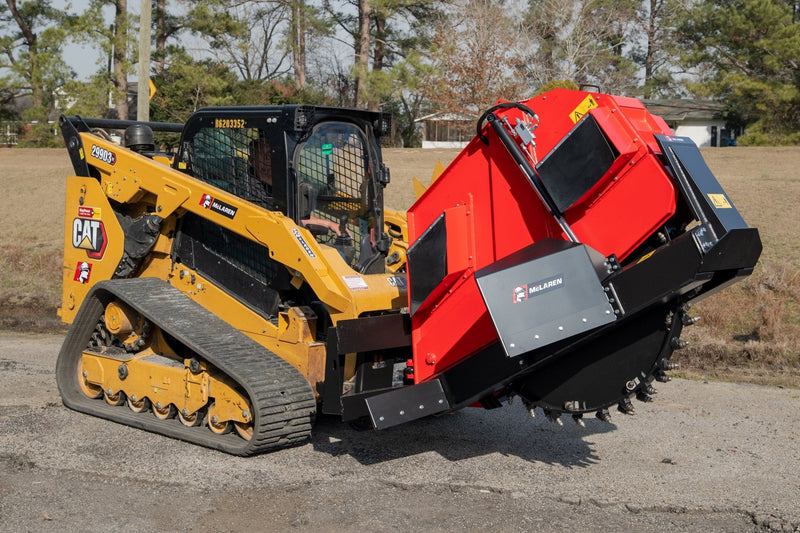

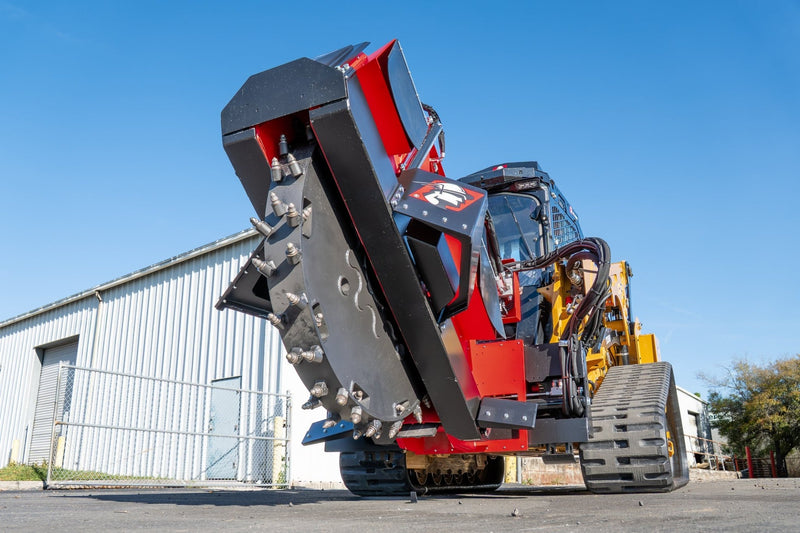

McLaren Industries Skid Steer Wheel Saw is constructed with high-quality components to ensure long-lasting performance in tough cutting environments. Available in 18” and 24” cut depth configurations, the Wheel Saw attachment can be matched to machines with 26 - 42 GPM hydraulic flow. Powered by the carrier’s high-flow hydraulics, it is equipped with a Bosch Rexroth piston motor and Kennametal carbide cutting picks, with the option to select either asphalt or rock pick configurations depending on the application; these pick types are not interchangeable but are available to match specific cutting conditions. It delivers optimal torque, efficient cutting, and extended service life across road, concrete, and asphalt cutting applications. A hydraulic depth adjustment gauge ensures consistent, uniform trench depth, improving accuracy and reducing rework. A trench cleaner attachment (available on select models and wheel sizes) and a hydraulic-controlled clean-out system help ensure a clean, debris-free trench, improving efficiency during utility installation.

Features & Benefits:

• High-Performance Bosch Rexroth Piston Motor: Piston motor capable of accommodating machines up to 42gpm providing optimal torque for the operator.

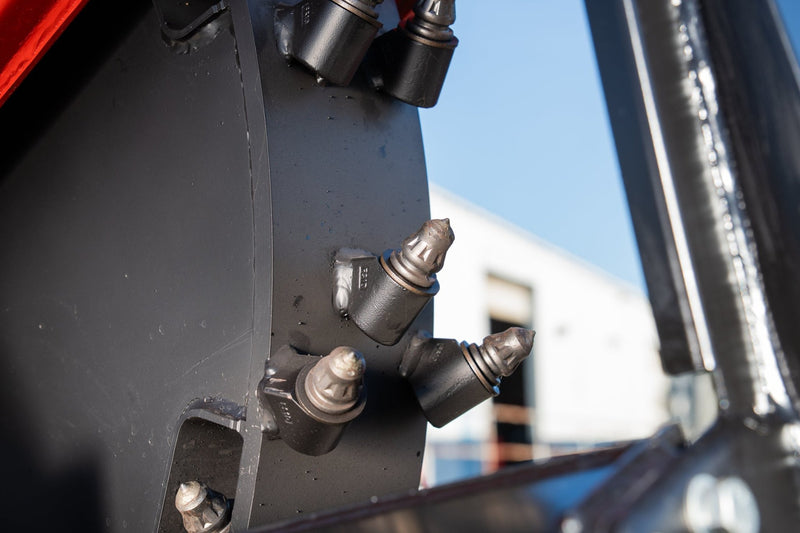

• Kennametal Performance Picks: Industry leading carbide picks for maximum longevity. Pick configurations are available in both asphalt and rock options, depending on application requirements; pick styles are not interchangeable.
• Side Cutter Picks: Helps reduce wear to the side of the wheel.
• Actuated Trench Cleaner: Hydraulically controlled trench cleaner made with durable abrasion-resistant Hardox steel.
• Frame and Skid Rollers: 4 points of continuous ground contact for increased stability and reduced vibrations.
• Different Width Cutting Discs (Optional): Optional disc widths per unit for more job flexibility.
• Hydraulic Depth Adjustment with support skids: Hydraulically adjusted depth control and support skids designed to provide optimum stability.
• Spoil Deflectors: 4 large material outlets (2 on each side) to ensure greater ease of exit of the material from the disc that helps facilitate the advancement of the wheel saw.
• Hydraulic Sideshift: 24” of sideshift allowing operator to mill in a central position or flush with a wall.

  Specifications:

  Model	MWT 450	MWT 600
  # of Picks	66	80
  GPM	26-37	32-42
  Cutting Width	Up to 5”	Up to 8”
  Trenching Depth	Up to 16”	Up to 24”
  Sideshift	Up to 24” of travel	Up to 24” of travel
  Operating Weight	2645lbs	2900lbs
  Case Drain	Required	Required
