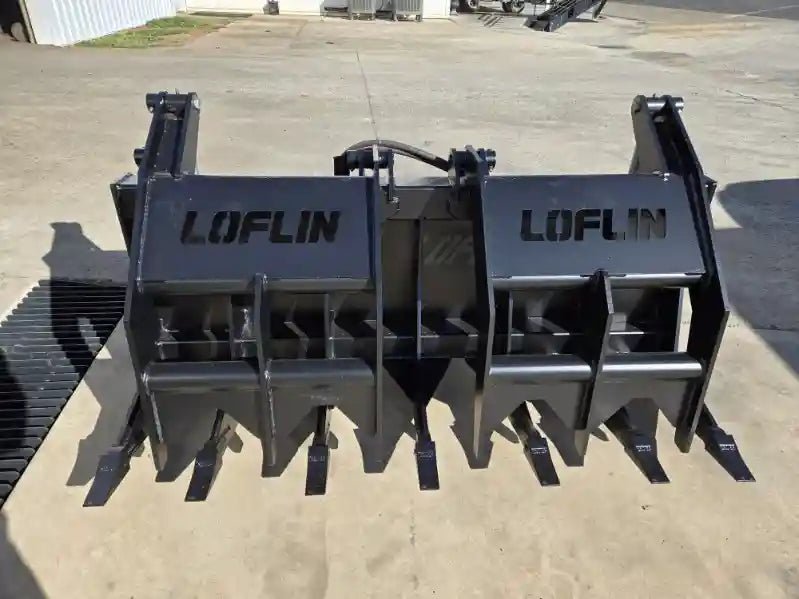

Loflin Fabrication Standard Duty Vertical Root Grapple
Authorized Loflin Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Loflin Fabrication Standard Duty Vertical Root Grapple is a purpose‑built skid steer and loader attachment engineered to tackle demanding land clearing, debris handling, and root extraction tasks. Built in the USA from high‑strength steel, this vertical‑style grapple is designed to sift dirt, lift heavy materials, and withstand everyday jobsite abuse with durable construction and smart functionality.
Featuring independent tines and powerful hydraulics, the vertical root grapple works like a rake — letting soil and fine debris pass through while securely gripping roots, brush, logs, and bulky material. Whether you’re clearing land, removing stumps, or handling irregular loads, this grapple delivers professional‑grade performance with long service life and reliable operation on a range of machines.
Trusted by contractors, landscapers, and land managers nationwide, the Loflin Fabrication Standard Duty Vertical Root Grapple combines versatile handling capability with rugged construction — making it a dependable attachment for heavy‑duty work.
Features & Benefits
- Heavy‑Duty Construction – Strong American‑made steel frame with 4″ square tubing and reinforced plates built for demanding jobs.
- Independent Grapple Tines – ½″ top and bottom tines provide secure gripping on roots, brush, and debris.
- Hydraulic Control – 2″ x 10″ hydraulic cylinders offer smooth and reliable tine movement.
- Efficient Sifting Action – Vertical rake‑style design allows dirt and loose material to fall through while retaining larger debris.
- Adjustable Width Options – Available in multiple widths (60″, 66″, 72″) to match machine size and application.
- Jobsite‑Ready Hardware – Equipped with quality Parker hoses, fittings, and couplers for easy hookup to standard hydraulic systems.
Specifications
| Specification | Details |
|---|---|
| Product Name | Loflin Fabrication Standard Duty Vertical Root Grapple |
| Applications | Land clearing, root removal, brush & debris handling |
| Overall Height | 36″ |
| Tine Opening Height | 54″ |
| Overall Length | 33 ½″ |
| Material Specs | 4″ square tubing w/ ¼″ side wall, ½″ tines, ⅜″ gussets & plates |
| Hydraulic Cylinder | 2″ bore x 10″ stroke (standard) |
| Tine Spacing | 60″ (11 ½″ spacing), 66″ (10 ¾″), 72″ (11 ¼″) |
| Widths Stocked | 60″, 66″, 72″ (custom available) |
| Recommended HP | Up to ~75 HP |
| Weight Range | 60″ (850 lbs), 66″ (900 lbs), 72″ (960 lbs) |
| Replaceable Teeth | Pengo 2300 Series |
| Part Numbers | 0660101060 / 0660101066 / 0660101072 |
| Build Origin | American Made – Loflin Fabrication |
