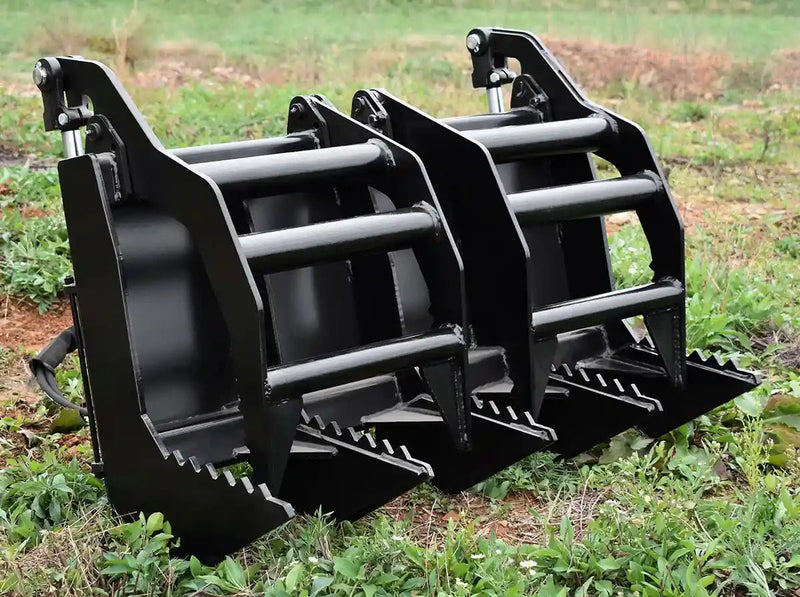

Loflin Fabrication Mini Vertical Root Grapple
New Equipment from Loflin Fabrication
Ensuring quality backed by manufacturer warranty & support.
The Loflin Fabrication Mini Skid Steer Vertical Root Grapple is a compact and rugged attachment built for mini skid steer platforms like Toro Dingo, Bobcat MT, and compatible compact tractor mounts. Designed to work like a rake with a vertical clamp over tough rake‑style tines, this grapple excels at combing debris, picking up brush and roots, and allowing soil to fall through — helping operators complete land cleanup tasks faster and more efficiently.
Built with high‑quality American steel and precision fabrication, this mini grapple brings professional‑grade performance to smaller machines. Its reinforced quick‑attach design and guarded hydraulic components make it ready for rugged daily use, while the smart tine layout ensures powerful gripping and smooth, reliable operation when clearing vegetation, brush piles, or root systems.
Whether you’re working on a compact landscaping job, managing brush around property boundaries, or performing light land clearing, the Loflin Fabrication Mini Skid Steer Vertical Root Grapple offers dependable durability and practical performance in tight spaces.
Features & Benefits
- Compact yet Rugged Design – Sized specifically for mini skid steer and compact tractor platforms while delivering durable performance on heavy work.
- Efficient Dirt Drop Action – Rake‑style tines allow soil to fall through while retaining brush and root debris for faster cleanup.
- Reinforced Quick‑Attach Compatibility – Strong quick‑attach mounting ensures a secure fit on popular mini machine interfaces.
- Hydraulic Power with Guards – Covered hydraulic cylinders and routed/guarded hoses protect key components on tough job sites.
- Independent Grapple Tines – Separate tines improve grip on uneven loads and enhance picking action.
- Greaseable Hinges – Serviceable hinges make maintenance easy and prolong attachment life.
Specifications
| Specification | Details |
|---|---|
| Product Name | Loflin Fabrication Mini Skid Steer Vertical Root Grapple |
| Applications | Brush raking, root combing, debris cleanup |
| Compatibility | Mini skid steer platforms (Toro Dingo, Bobcat MT), compact tractor mounts |
| Overall Height | 31″ |
| Overall Length | 19″ |
| Top / Bottom Tines Thickness | 3/8″ |
| Main Frame | 3″ square tubing |
| Hydraulic Cylinders | 2″ × 10″ |
| Opening Width (Approx.) | 33″ |
| Available Widths | 36″, 42″, 48″ |
| Hydraulic Hydraulics | Covered cylinder, guarded hoses |
| Part Numbers & Mounts | 0662006036 (36″ Toro Dingo), 0662006042 (42″ Toro Dingo), 0662006048 (48″ Toro Dingo), 0662008048 (48″ Bobcat MT) |
| Build Origin | American Made – Loflin Fabrication |
