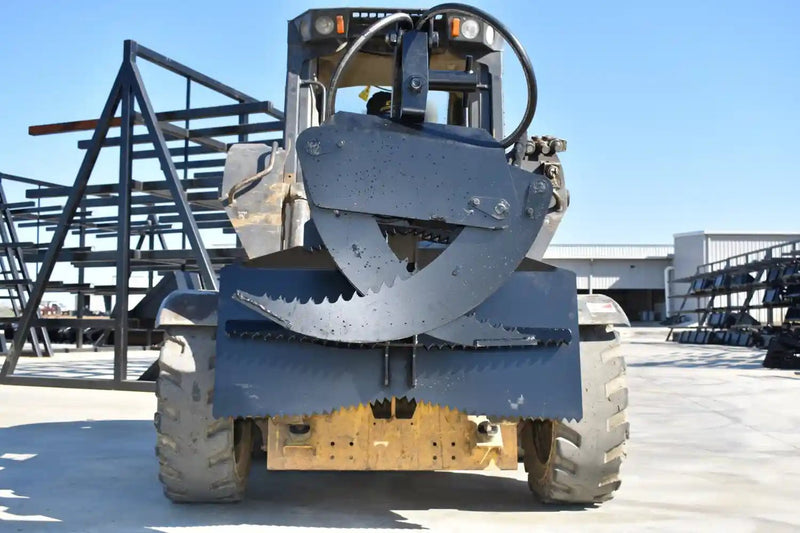

Loflin Fabrication Manual Log Grapple
New Equipment from Loflin Fabrication
Ensuring quality backed by manufacturer warranty & support.
The Loflin Fabrication Manual Log Grapple is a rugged, purpose‑built attachment designed for skid steer loaders, excavators, and other compatible machinery used to lift, transport, and handle logs, brush, stumps, and bulky materials. Built in the USA using high‑strength steel and expert fabrication techniques, this grapple delivers reliable performance and long‑lasting durability in demanding outdoor environments.
This manually rotating grapple provides 180° positioning without a wiring harness; hydraulic power is required to open and close the grapple when handling heavy loads, making it ideal for a wide range of applications where simplicity and strength matter most. The robust design and reinforced construction mean it can stand up to tough forestry, landscaping, and site‑prep tasks while delivering dependable results every time.
Whether you’re clearing land, moving firewood, or sorting bulky debris, the Loflin Fabrication Manual Log Grapple combines heavy‑duty strength with efficient operation - making tough jobs easier and more productive.
Features & Benefits
- Heavy‑Duty Construction – Fully reinforced frame and thick tines provide durability and long service life under rigorous use.
- Precise Manual Rotation – 180° manual rotation enables flexible positioning without a wiring harness; hydraulic power operates the grapple.
- Wide Operation Range – 62″ maximum opening with 5″ tight close range for versatile handling of varying load sizes.
- Optimal Load Grip – Serrated tine options offer superior grip on uneven logs and brush, improving operator efficiency.
- No Wiring Required – Simplified design requires no wiring harness, lowering installation complexity and maintenance.
- Versatile Material Handling – Excellent for forestry, landscaping, logging, debris cleanup, and general material management.
Specifications
| Specification | Details |
|---|---|
| Product Name | Loflin Fabrication Manual Log Grapple |
| Applications | Handling logs, brush, stumps, and bulky materials |
| Opening Width | 62″ |
| Closing Width | 5″ |
| Cylinder Size | 2 ½″ x 8″ |
| Tine Thickness | ½″ |
| Rotation | 180° manual |
| Hydraulic Pressure | 3,200 psi (system spec) |
| Lift Capacity | 2,500 lbs |
| Weight | 500 lbs |
| Options | Serrated or smooth tines |
| Part Number | 0750101000 |
| Build Origin | American Made – Loflin Fabrication |
