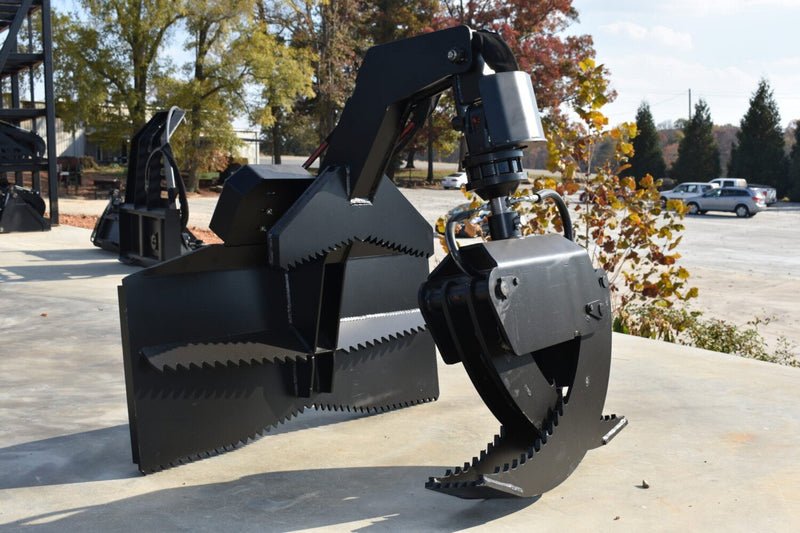

Loflin Fabrication Hydraulic Log Grapple
New Equipment from Loflin Fabrication
Ensuring quality backed by manufacturer warranty & support.
The Loflin Fabrication Hydraulic Log Grapple is a heavy‑duty attachment crafted to give operators superior control when lifting, handling, and transporting logs, stumps, brush, and bulky materials with skid steer loaders, excavators, and other hydraulic machinery. Proudly American‑made in North Carolina with rugged steel and expert fabrication, this grapple is engineered for long service life and reliable performance across demanding jobs.
Built for professional contractors, landscapers, foresters, and land managers, the hydraulic grapple combines strong grapple force and adjustable operation to handle uneven and irregular loads with confidence. Its wide opening range and powerful clamping action make loading and unloading efficient, while optional tines and rotation features provide flexibility for specialized applications.
Whether clearing land, moving firewood, or sorting debris, the Loflin Fabrication Hydraulic Log Grapple delivers unmatched grip strength and durability that increases productivity and eases material handling on every worksite.
Features & Benefits
- Powerful Grappling Force – Up to 9,500 lbs of clamping force for secure handling of heavy logs, stumps, and debris.
- Wide Opening Range – 5″ close up to 62″ wide to accommodate varied load sizes.
- Hydraulic Control – Smooth and precise hydraulic actuation with included wiring harness for easy hookup.
- Rotational Options – Choose 360° hydraulic rotation for full flexibility or 180° manual rotation based on your needs.
- Rugged Construction – Fully reinforced frame and heavy‑gauge tines (½″ thickness) for extended durability in demanding environments.
- Serrated or Smooth Tines – Optional serrated tines improve grip on uneven loads; smooth tines for gentler handling.
Specifications
| Specification | Details |
|---|---|
| Product Name | Loflin Fabrication Hydraulic Log Grapple |
| Applications | Lifting and handling logs, brush, stumps, debris |
| Opening Width | 62″ |
| Closing Width | 5″ |
| Grappling Force | 9,500 lbs |
| Hydraulic Cylinders | 2 ½″ x 8″ |
| Tine Thickness | ½″ |
| Hydraulic Pressure | 3,200 psi |
| Lift Capacity | 3,500 lbs |
| Weight | 550 lbs (hydraulic) |
| Options | Serrated or smooth tines; hydraulic or manual rotation |
| Part Number | 0753600000 |
| Build Origin | American Made – Loflin Fabrication |
