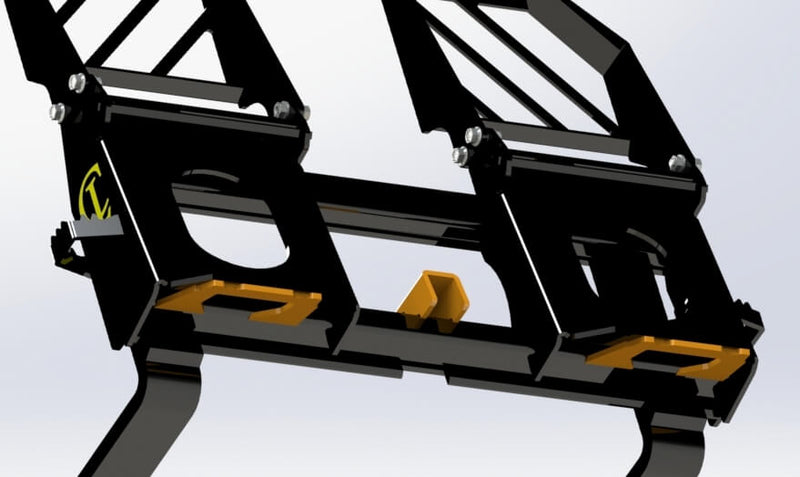

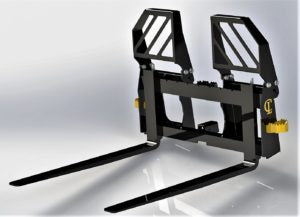

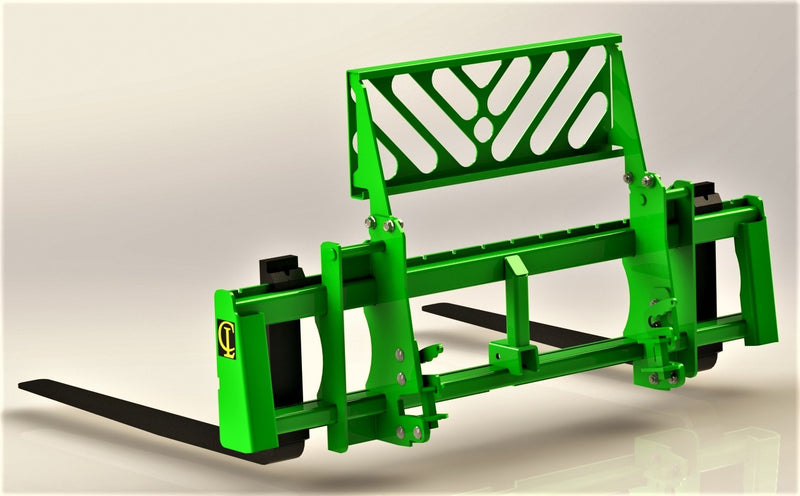

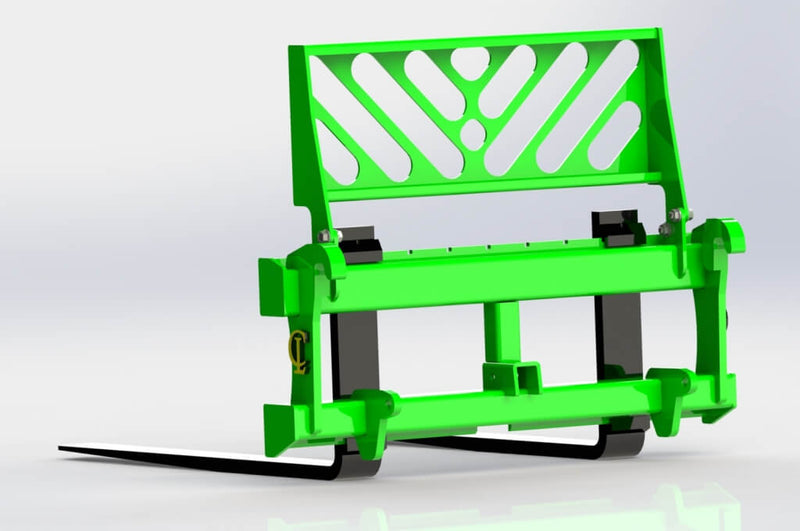

CL Fabrication EX-Pallet Forks for Skid Steer and Tractor Loaders
Authorized CL Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.

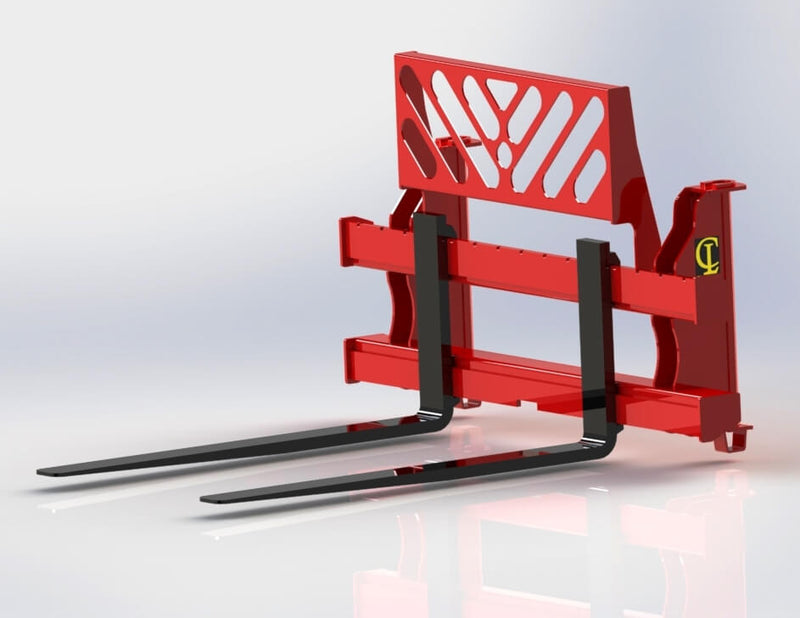

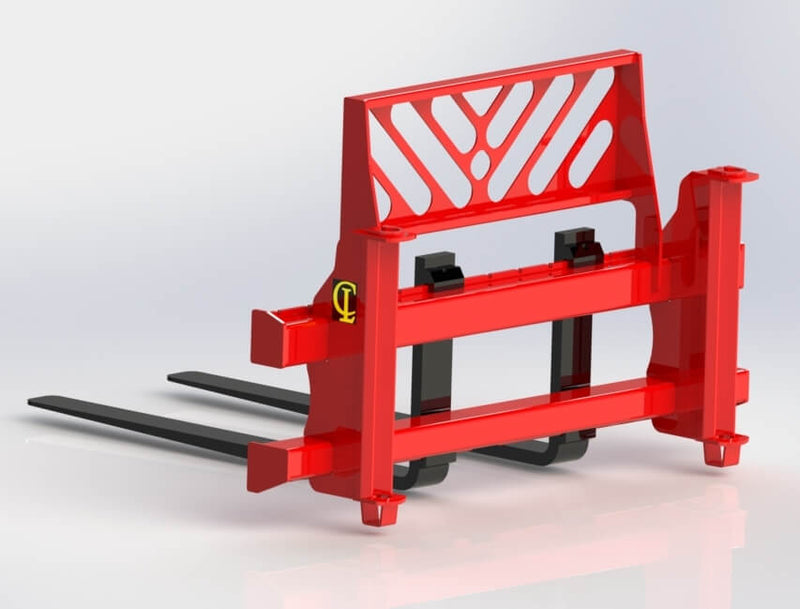

The CL Fabrication EZ Pallet Forks are engineered for skid steers and tractor loaders, delivering exceptional strength, versatility, and material handling performance. Built with patented single-piece frame brackets and heavy-duty steel construction, these pallet forks are designed to handle demanding agricultural, construction, landscaping, and industrial applications. Available in multiple carriage widths, the EZ Pallet Forks provide the flexibility needed to accommodate a wide range of loads while maintaining excellent stability and durability.
Designed for productivity and convenience, each fork set includes forks, removable walk-through brick guards, anti-slip access steps, and a built-in receiver hitch for moving trailers and equipment. Optional bale spike and hydraulic grapple attachments further expand the functionality of the system, making the EZ Pallet Forks a versatile solution for lifting pallets, transporting materials, handling hay bales, and managing bulky loads.
Features & Benefits

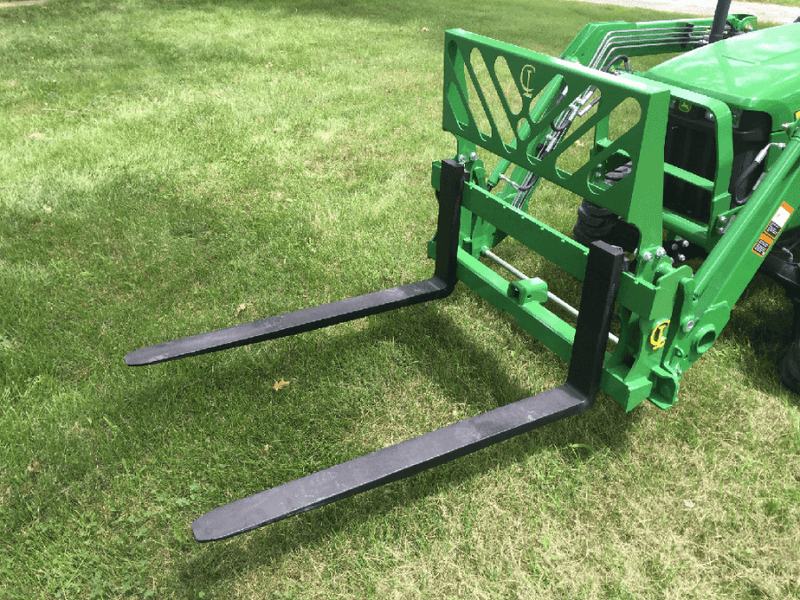

- Designed for skid steers and tractor loaders
- Patented single-piece frame brackets provide superior strength and durability
- Available in multiple carriage widths to suit various applications
- Includes complete carriage, forks, and removable brick guards

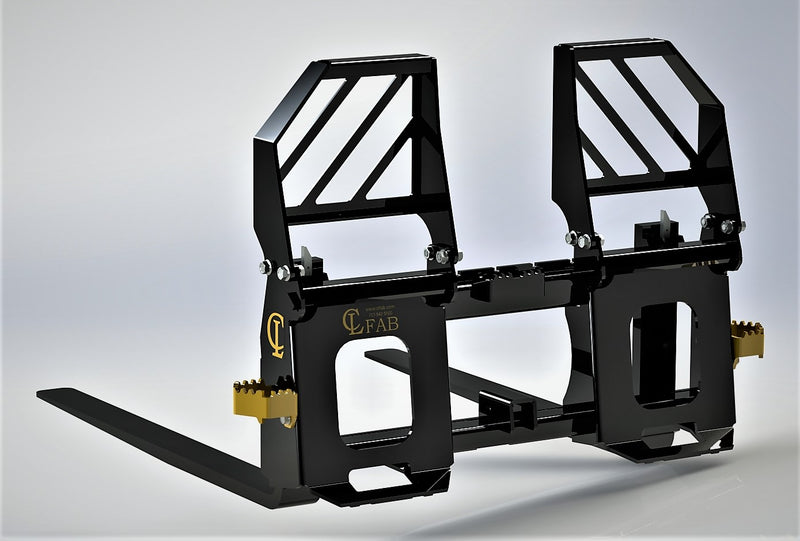

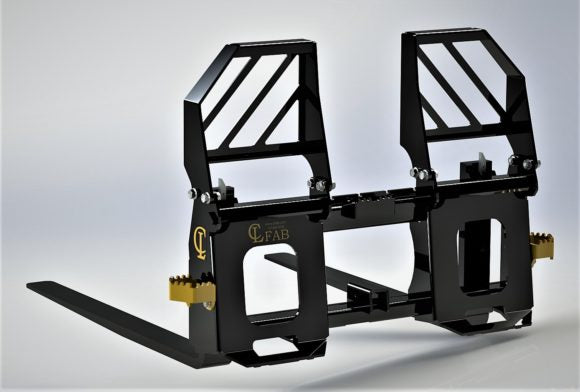

- Walk-through brick guard improves visibility and operator convenience
- Built-in 2-inch receiver hitch allows easy trailer and equipment movement
- Bolt-on access steps on both sides improve operator safety
- Anti-skid center step provides secure footing
- High-strength steel carriage construction ensures long service life
- Compatible with standard ITA Class II pallet forks
- Optional bale spike attachment installs quickly without tools

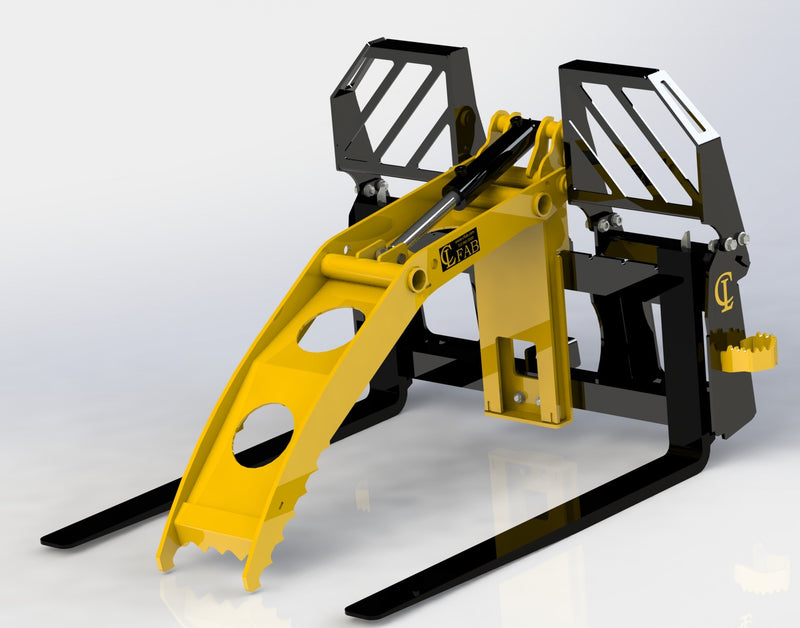

- Optional hydraulic grapple enhances load control and material retention
- Powder-coated finish resists corrosion and wear
Specifications
| Specification | Details |
|---|---|
| Product Name | EZ Pallet Forks |
| Compatible Equipment | Skid Steers & Tractor Loaders |

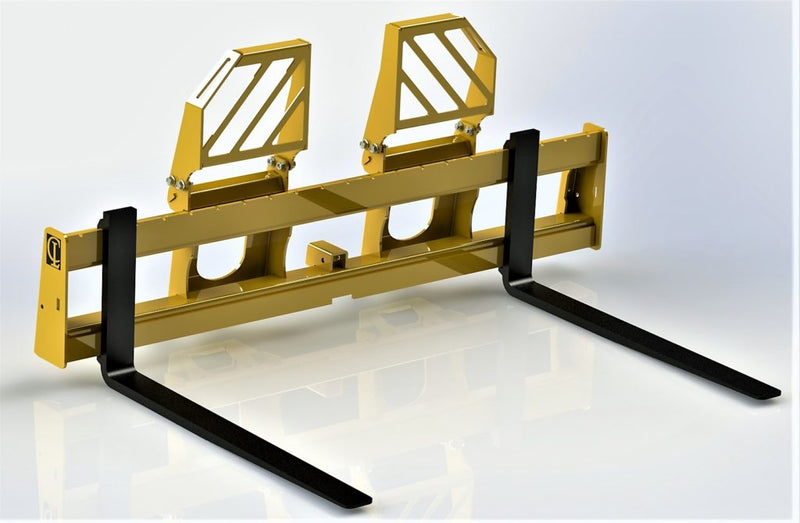

| Available Carriage Widths | 45 in., 60 in., 72 in., 84 in. |
| Standard Fork Length | 48 in. |
| Fork Length Options | Additional Lengths Available |
| Carriage Capacity | 5,250 lbs Rated |
| Fork Compatibility | ITA Class II Forks |
| Carriage Bars | 1/2 in. Thick AR400 Steel |
| Skid Steer Latch Plates | 3/4 in. Thick Steel |
| Attach Points | 3/4 in. Thick Upper & Lower Plates |
| Brick Guard | Removable Walk-Through Design |
| Receiver Hitch | Integrated 2 in. Receiver |
| Access Steps | Bolt-On Steps on Both Sides |
| Center Step | Anti-Skid Design |
| Finish | Abrasive Blasted & Powder Coated |
| Included Components | Forks, Carriage & Brick Guards |
| Optional Bale Spike | 49 in. 3,500 lb Rated Spike with 17 in. Stabilizer |
| Optional Grapple | Hydraulic Grapple Attachment |
| Applications | Pallet Handling, Material Transport, Hay Bale Handling & Equipment Moving |
