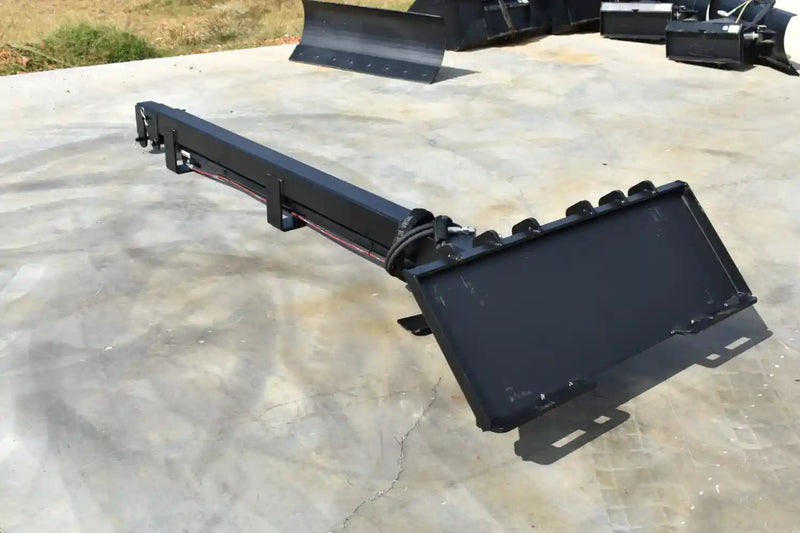

Loflin Fabrication Hydraulic Teleboom
Authorized Loflin Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Loflin Fabrication Hydraulic Teleboom is a heavy‑duty reach extension attachment designed to give skid steer operators increased versatility on jobs that demand height and distance. Whether you’re installing roof trusses, setting poles, mounting signage, or handling elevated construction tasks, this teleboom delivers dependable performance with smooth hydraulic operation and an impressive reach.
Built with rugged American‑made steel and precision fabrication, this teleboom combines strength and adaptability — allowing you to work safely at height without sacrificing lifting capacity at closer reach. Its universal quick‑attach compatibility keeps your skid steer versatile on the jobsite, and the integrated hydraulic quick‑connect couplers make setup fast and easy.
From general construction and utility installations to specialized rigging and material handling, the Loflin Fabrication Hydraulic Teleboom expands what your skid steer can do — extending reach while maintaining control and capacity.
Features & Benefits
- Extended Reach Capability – Fully extends to 19 ft, providing exceptional reach for elevated tasks such as truss setting and pole placement.
- High Lift Capacity – Offers 800 lbs capacity when contracted and 415 lbs at full extension for versatile load handling.
- Universal Compatibility – Designed with universal quick‑attach mount for easy hookup to standard skid steer loaders.
- Hydraulic Operation – Smooth, controlled extension and retraction powered by skid steer hydraulics with quick‑connect couplers for fast installation.
- Rugged Construction – Built using heavy‑gauge seamless square tubing across multiple wall thicknesses to resist bending and wear under load.
- Versatile Construction Utility – Ideal for roofing, sign installation, overhead framing, and a host of general elevated jobs.
Specifications
| Specification | Details |
|---|---|
| Product Name | Loflin Fabrication Hydraulic Teleboom |
| Application | Reach extension for construction, roofing, signage, truss placement |
| Fully Extended Length | 19 ft |
| Fully Contracted Length | 9 ½ ft |
| Max Rated Capacity (Extended) | 415 lbs |
| Max Rated Capacity (Contracted) | 800 lbs |
| Material Specs | 4 ½″ × 4 ½″ seamless square tubing (3/16″ wall), 4″ × 4″ (3/16″ wall), 3 ½″ × 3 ½″ (1/4″ wall) |
| Required Skid Steer Rated Lift (Min) | 1,750 lbs |
| Weight | 525 lbs |
| Hydraulic Features | Quick‑connect couplers for smooth operation |
| Compatibility | Universal skid steer quick‑attach systems |
| Part Number | 0650101259 |
| Build Origin | American Made – Loflin Fabrication |
Ground Freight: 7-10 business days
Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at (301) 200-2113 or email support@landbossequipment.com.
