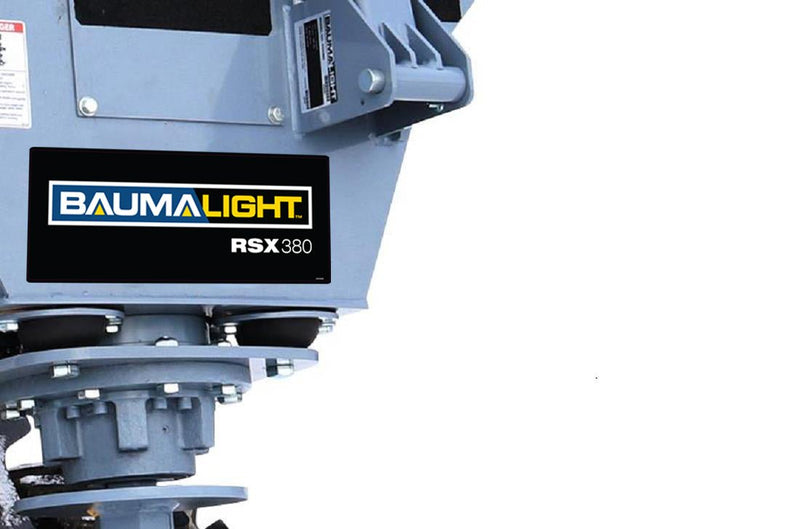

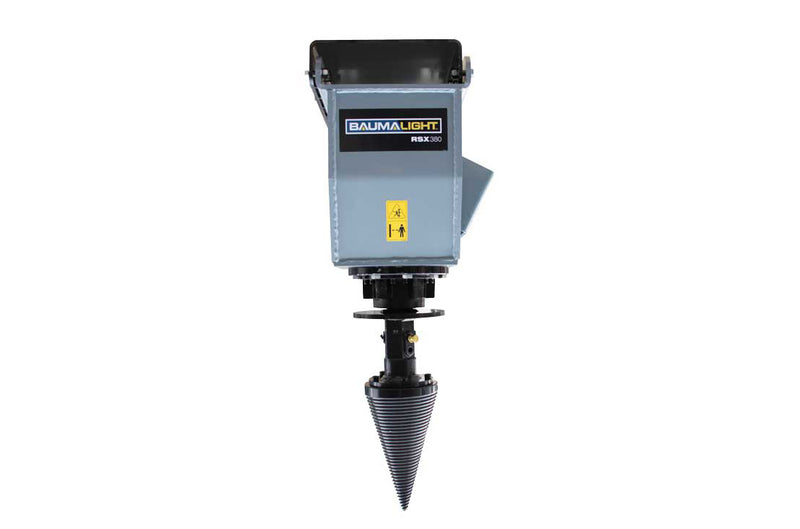

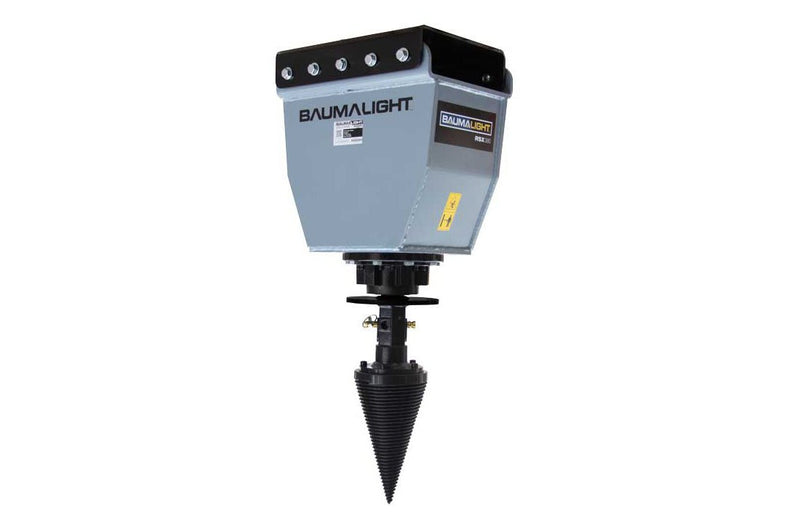

Baumalight RSX380 Excavator Log Splitter
Authorized Baumalight Dealer
Ensuring quality backed by full manufacturer warranty & support.

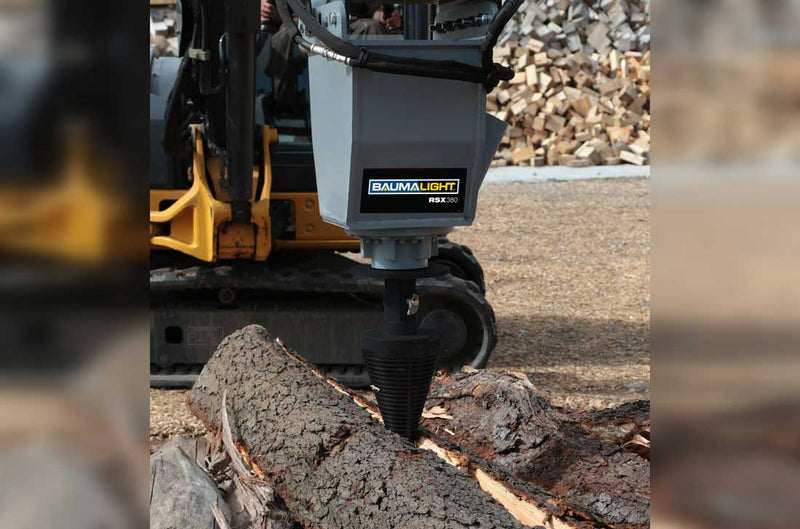

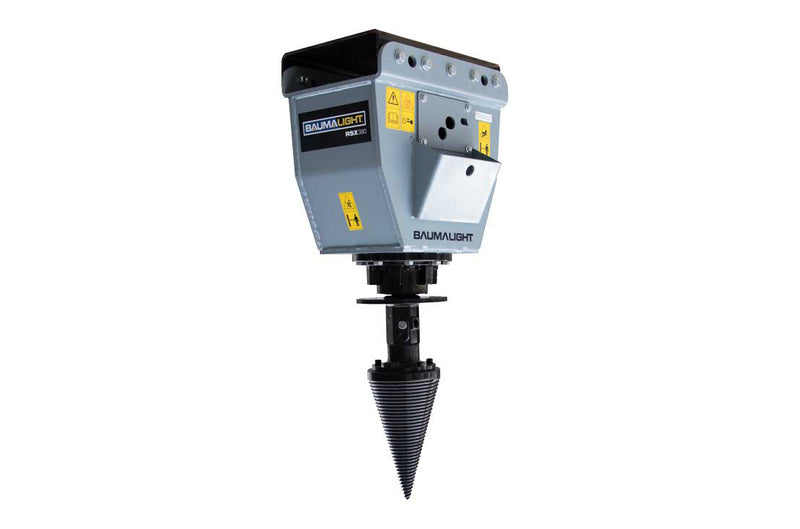

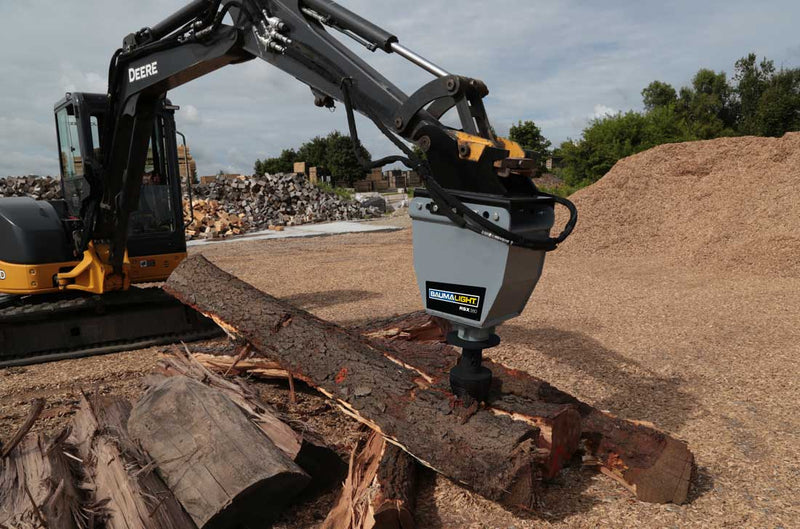

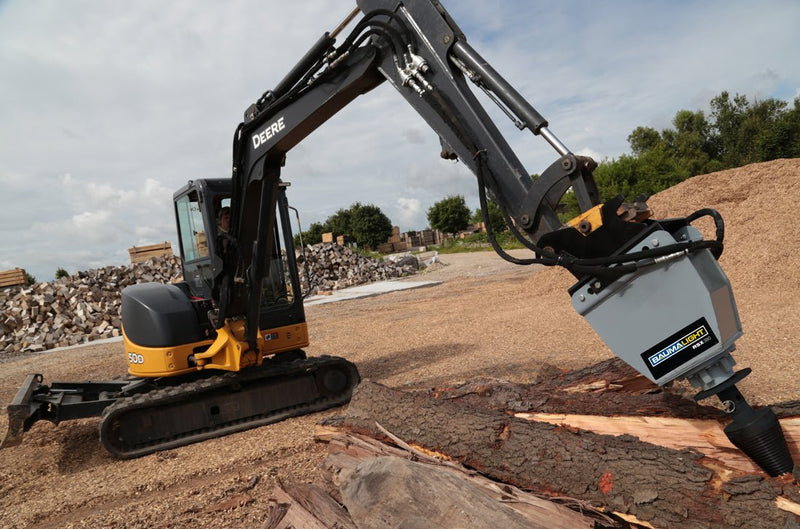

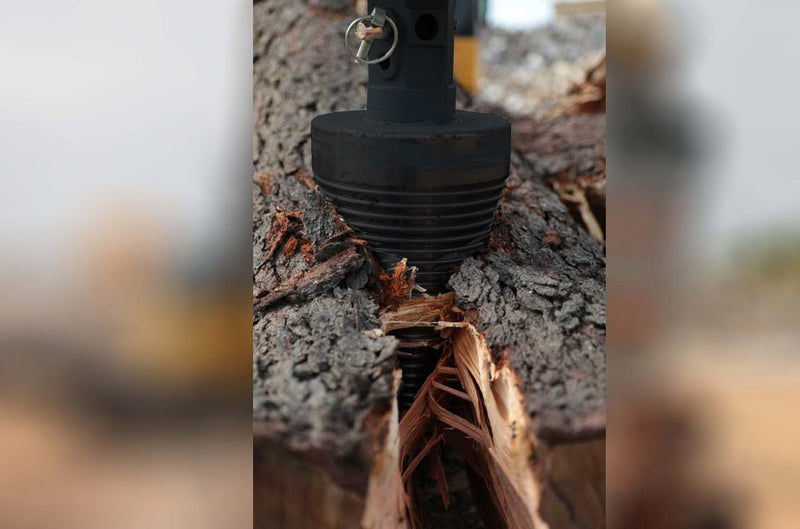

The Baumalight RSX380 Excavator Log Splitter is engineered for professional contractors and landscapers who need to split logs up to 12–20 ft efficiently. Designed with a bolt-on excavator mount, this unit is powered by a hydraulically-driven planetary drive delivering up to 3,800 ft/lbs of torque to the splitting head. The splitting bit features two helical spirals joined at a hardened tip for easy boring. Driven on a 2” hex shaft or flange mount with integrated protective shielding, the RSX380 operates safely and reliably for horizontal or vertical log splitting from an excavator.
Features & Benefits

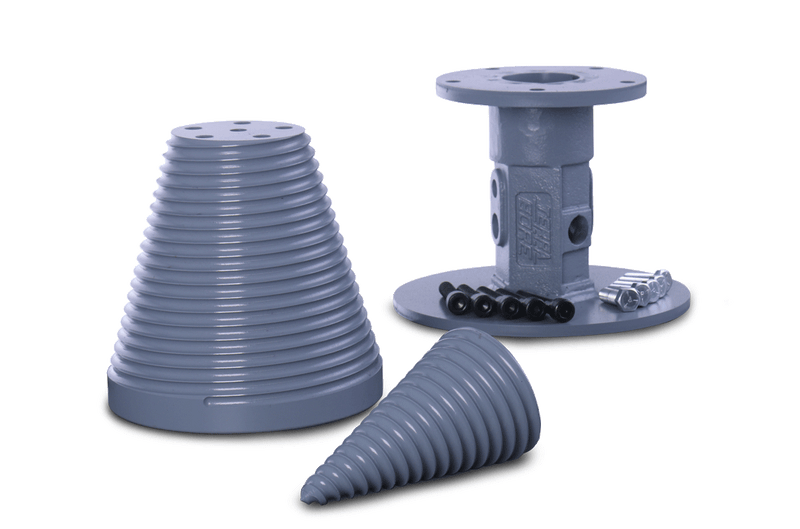

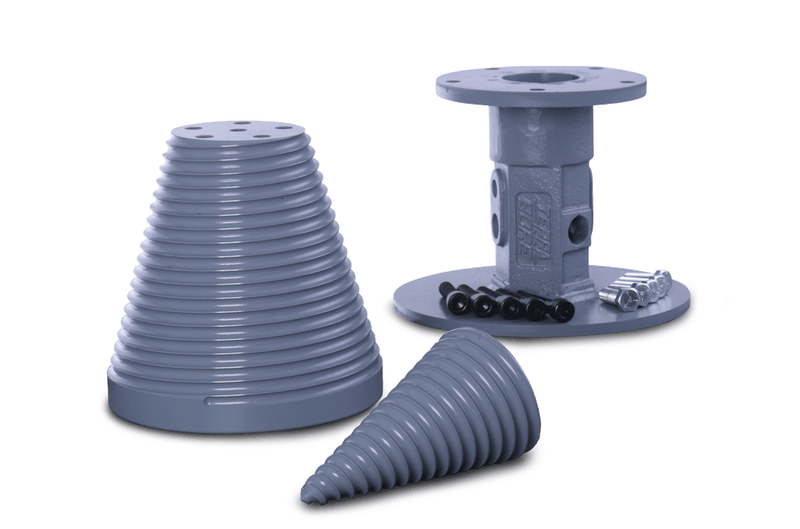

- Splitter Tools: 2” Hex 14x8 splitter cone (D002193)
- Adaptor: Bolt-on excavator mount for versatile attachment
- Carrier Weight Capacity: 5 tons for planer, 8 tons for splitter
- Hydraulic Requirements: 20–40 GPM; 2,500–3,000 PSI, max 3,500 PSI
- Drive Type: Planetary drive for maximum torque and efficiency
- Drive Size: 2” Hex shaft for durability

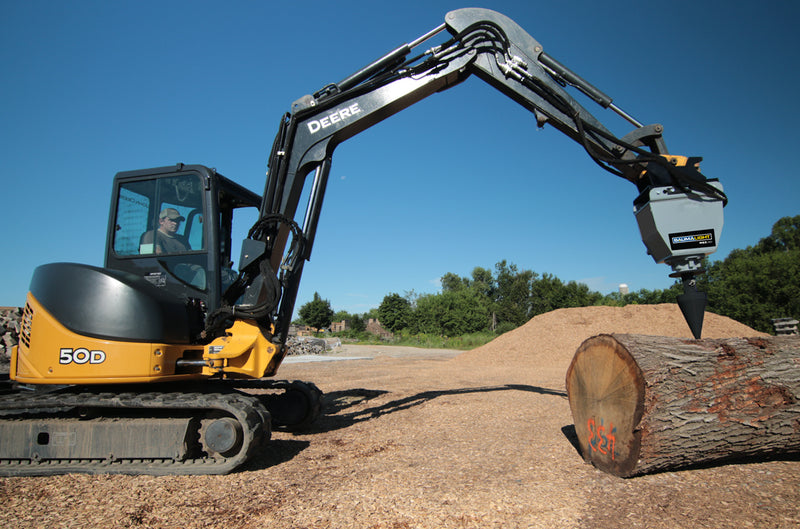

- Heavy-Duty Build: Rugged encasement and powder-coated finish
- Main Shaft Seal Protection: Shields bearings from debris

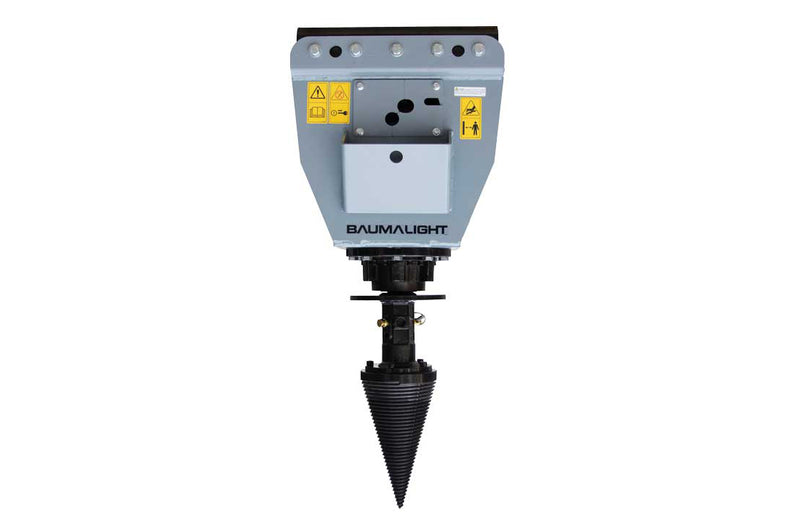

- High Splitting Force: Superior to cylinder-driven splitters

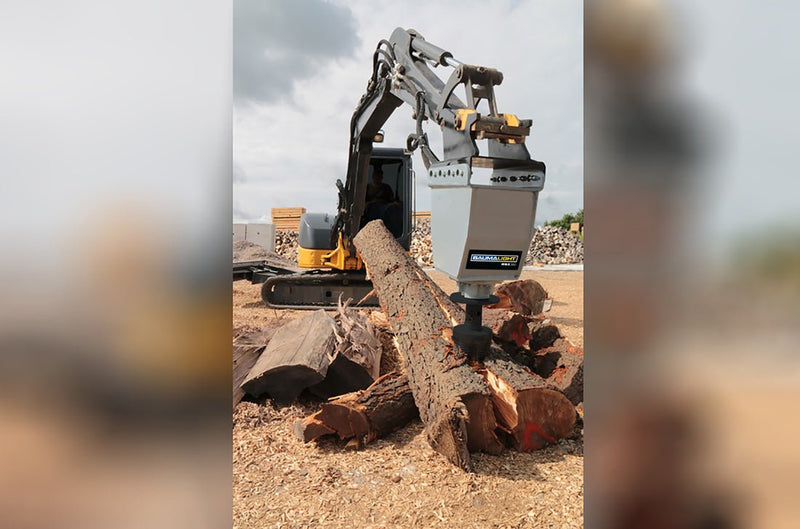

- One-Person Operation: Split logs from excavator without leaving the cab

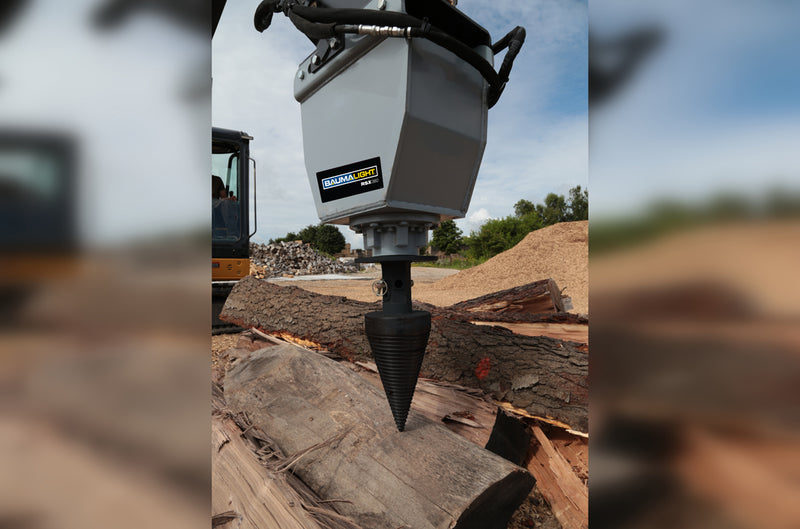

- Hardened Replaceable Tip: Long-lasting cutting edge

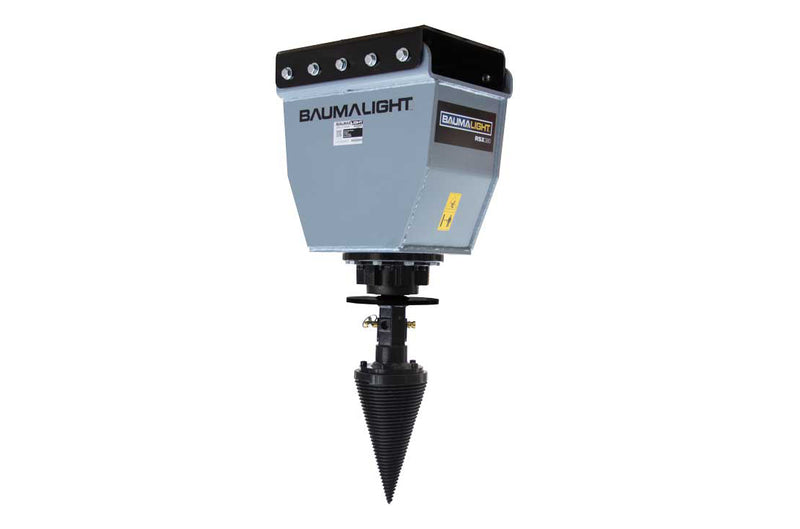

- Easy Bit Change: Quick change between splitting and grinding attachments

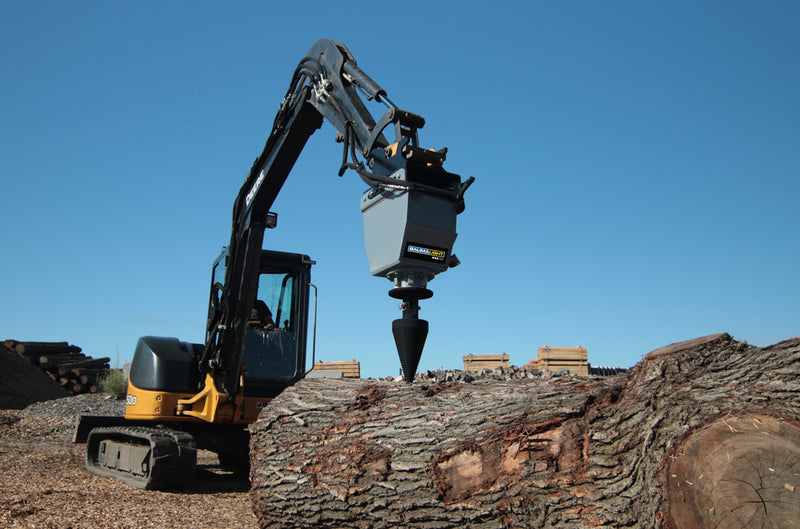

- Bolt-On Excavator Adapter: Allows easy mounting on multiple excavators
- Hoses Included: No extra electrical cables required
Specifications
| Specification | Details |
|---|---|
| Model / SKU | RSX380 |
| Splitter Tools | 2” Hex 14x8 splitter cone (D002193) |
| Adaptor | Bolt-on Excavator mount |
| Carrier Weight (Planer) | 5 tons max |
| Carrier Weight (Splitter) | 8 tons max |
| Recommended GPM | 20–40 GPM |
| Maximum GPM | 45 GPM |
| Recommended PSI | 2,500–3,000 PSI |
| Maximum PSI | 3,500 PSI |
| Drive Type | Planetary |
| Drive Size | 2” Hex |
| Hoses Included | No |
| Safety Features | Main shaft seal protection, anti-slip mat, internal hose routing |
| Optional Bits | Quick-change for splitting and grinding |
