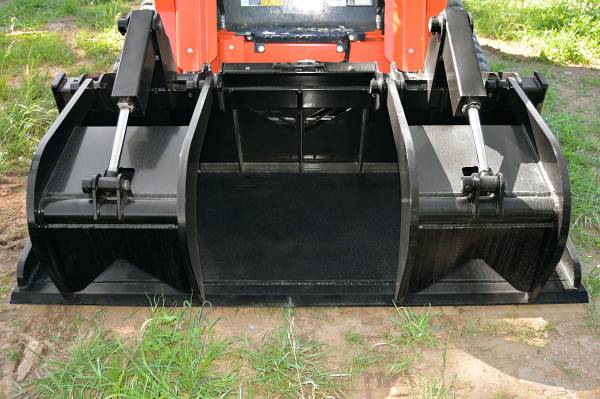

Loflin Fabrication XHD Grapple Bucket
Authorized Loflin Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Loflin Fabrication XHD Grapple Bucket is designed to handle the toughest material handling and debris clearing tasks with ease. With working widths ranging from 66" to 84" and a powerful 9,500 lbs of grappling force, this bucket is built to handle extreme conditions. It is engineered for skid steers with 75-120 HP, offering unmatched durability and strength for demanding jobs such as construction, landscaping, and forestry.
Constructed with 1" thick independent grapple tines and heavy-duty hydraulic cylinders, the XHD Grapple Bucket delivers superior performance and reliability. Its reinforced steel frame, 1" x 8" precision cutting edge, and optional bolt-on reversible double edge make it a versatile tool for clearing, lifting, and loading heavy materials. With a flow rate of 15 to 25 GPM, this bucket is designed for high-horsepower skid steers to ensure maximum efficiency on the job.
Features & Benefits:
- Heavy-Duty Steel Frame: Reinforced with ¼" thick steel bottom and 1" thick sides for maximum durability.
- 1" Thick Independent Grapple Tines: Secure grip on uneven loads ensures stability and control.
- Powerful Hydraulic Cylinders: Equipped with 2" x 10" cylinders delivering 9,500 lbs of grappling force.
- Precision Cutting Edge: A 1" x 8" edge enhances material separation and leveling capabilities.
- Optional Bolt-On Reversible Double Edge: Customize cutting precision and extend the bucket's lifespan.
- Oversized, Greasable Pins: 1¼" pins improve smooth operation and durability.
- Hydraulic Flow Compatibility: Designed for 15-25 GPM, ensuring optimal performance with various skid steers.
- Reinforced Quick Attach System: Ensures secure and stable connection to your skid steer, improving handling.
- Treaded Step for Operator Safety: Provides stable footing and easy entry/exit for skid steer operation.
- Universal Skid Steer Compatibility: Compatible with most skid steer loaders.
Specifications:
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | XHD Grapple Bucket |
| Type | Heavy Duty Grapple Bucket |
| Working Width | 66", 72", 78", 84" (Custom sizes available) |
| Maximum Horsepower | 75-120 HP |
| Grappling Force | 9,500 lbs |
| Grapple Tine Thickness | 1" thick independent tines |
| Cylinder Size | 2" x 10" |
| Cutting Edge | 1" x 8" |
| Bucket Bottom Thickness | ¼" reinforced steel |
| Bucket Side Thickness | 1" thick steel |
| Pin Size | Oversized, greasable 1¼" |
| Quick Attach | Reinforced |
| Hydraulic Flow | 15 To 25 GPM |
| Key Benefit | Extreme durability and power for demanding material handling tasks |
