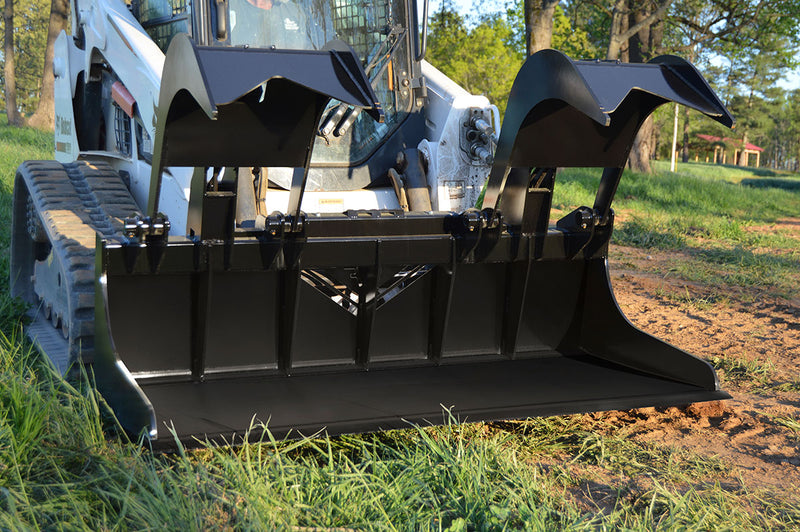

Loflin Fabrication Standard Duty Grapple Bucket
Authorized Loflin Fabrication Dealer
Ensuring quality backed by full manufacturer warranty & support.
The Loflin Fabrication Standard Duty Grapple Bucket is designed for heavy-duty material handling, offering precision and strength for grappling uneven loads. Equipped with independent grapple tines, this attachment allows operators to easily manage and secure various materials, from debris to heavy objects, making it ideal for use in construction, landscaping, and agricultural applications. Featuring 9,500 lbs of grappling force and 2” x 10” cylinders, this grapple bucket offers the performance and durability needed for demanding tasks.
The bucket's reinforced quick attach system, fully protected hydraulic cylinders, and oversized, greasable 1 1/4” pins ensure long-lasting reliability, while the 3/4” x 6” cutting edge and 1/4” thick reinforced steel bottom provide superior durability for digging and grading. Available in sizes from 60” to 84”, with an opening width of 31.75”, the Loflin Standard Duty Grapple Bucket is built to tackle tough material handling tasks, and it's compatible with machines up to 75 horsepower.
Features & Benefits:
- Independent Grapple Tines: For better control when grappling uneven or irregular loads.
- 9,500 lbs Grappling Force: Powerful hydraulic cylinders provide excellent force for grabbing and handling materials.
- Heavy-Duty Construction: 3/4” x 6” cutting edge and 1/4” thick reinforced steel bottom for maximum durability.
- Hydraulic Components: Equipped with Parker brand hoses, fittings, and couplers for job-site readiness.
- Reinforced Quick Attach: For quick and secure attachment to your equipment.
- Oversized, Greasable Pins: Ensures smooth operation with easy maintenance.
- Customizable Size Options: Available in sizes from 60” to 84”, with custom sizes available.
- Operator Safety: Treaded step for safe machine entry and exit.
- Bolt-On Reversible Double Edge (Optional): Enhances durability for more demanding applications.
Specifications:
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Standard Duty Grapple Bucket |
| Type | Heavy-Duty Grapple Bucket |
| Opening Width | 31.75” |
| Hydraulic Cylinders | 2” x 10” cylinders |
| Grappling Force | 9,500 lbs |
| Cutting Edge | 3/4” x 6” cutting edge |
| Bottom Thickness | 1/4” thick reinforced steel |
| Reinforced Quick Attach | Yes |
| Hydraulic Protection | Fully protected hydraulic cylinders |
| Greaseable Pins | Oversized, greasable 1 1/4” pins |
| Hydraulic Components | Parker brand hoses, fittings, and couplers (Jobsite ready) |
| Treaded Step | Yes |
| Custom Size Options | Available (standard sizes: 60”, 66”, 72”, 78”, 84”) |
| Recommended HP | Up to 75 horsepower |
| Key Benefit | Efficient material handling with strong hydraulic force, designed for tough jobs and easy maintenance |
